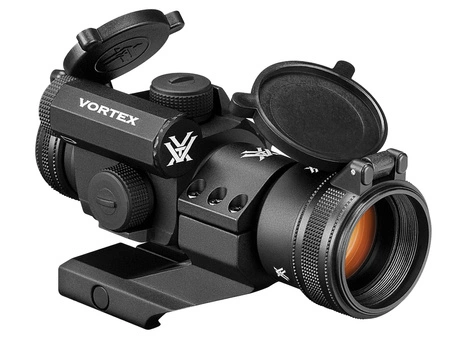

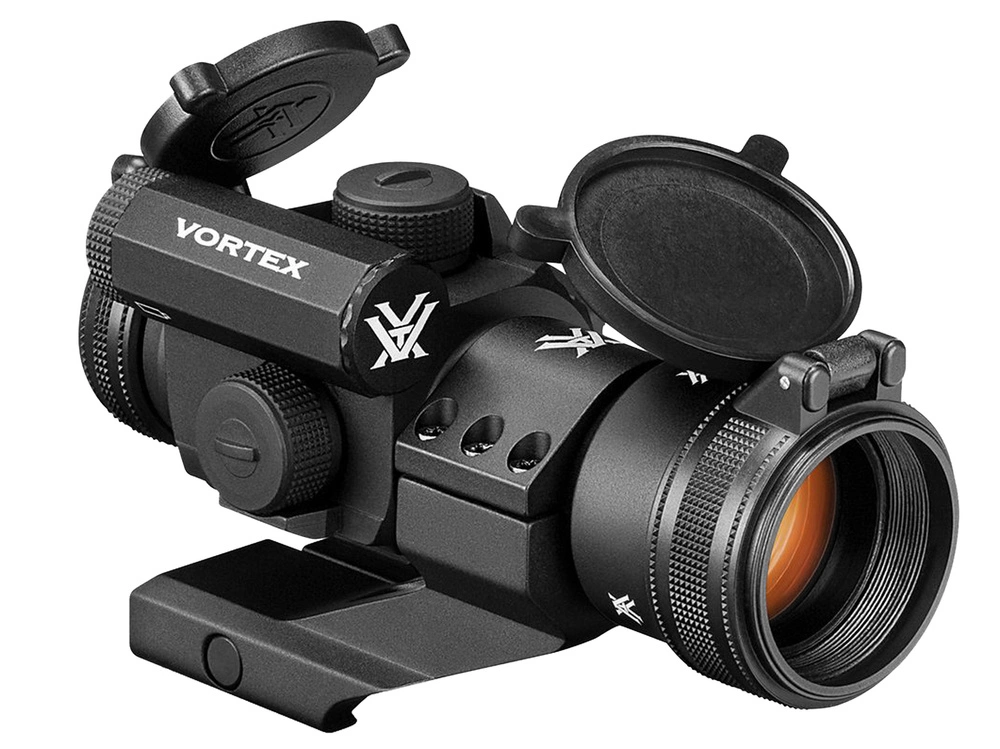

Vortex StrikeFire II Red collimator
Vortex StrikeFire II Red
Budget collimator sight for shooting at short and medium distances, with a 4 MOA dot and a 30 mm barrel that provides a wide field of view.
The Vortex StrikeFire II Red is a proven rifle collimator that is distinguished by its reliable performance, large range of aiming point adjustment and long operating time of up to 8,000 hours (6. brightness level).
Compared to smaller collimators like Sparc or Crossfire, the Strikefire II model has a 30mm diameter tube, which affects a much wider field of view, and allows a powerful range of dot adjustment.
Solid construction
- One-piece 30mm diameter collimator tube is made of durable aircraft grade aluminum, which guarantees the durability of the structure against recoil, mechanical damage and falling down.
- Thorough sealing and filling the body with dry nitrogen eliminates the problem of optics evaporation, and prevents the entry of moisture, so that the viewfinder can be safely used in rain, snowfall and humid environments.
- Aluminum was subjected to HA-III hard anodizing process, thus creating a blackomat coating with very high scratch and abrasion resistance.
Optical system
- The collimator uses lenses with very high light transmission. This was achieved by using multi-layer anti-reflective coatings on all air-to-glass surfaces. For aiming, there is a 4 MOA red dot, allowing instant transition between targets.
- The dot size has been adjusted for dynamic shooting at short and medium distances, where instinctive aiming and quick transitions between targets are most important.
- The aiming point has 10 brightness settings, which allows not only to adjust the dot to the lighting conditions, but also to shoot with night vision (the first 2 settings).
- The viewfinder, like most collimators on the market, has a marginal parallax error that does not noticeably affect performance, which is why, in accordance with established industry practice, the manufacturer describes the device as "parallax error-free".
Large adjustment range, convenient operation
- Adjustment of the dot's position is made with two covered drums (1/2 MOA click value), whose setting range is as much as 100 MOA vertically and horizontally.

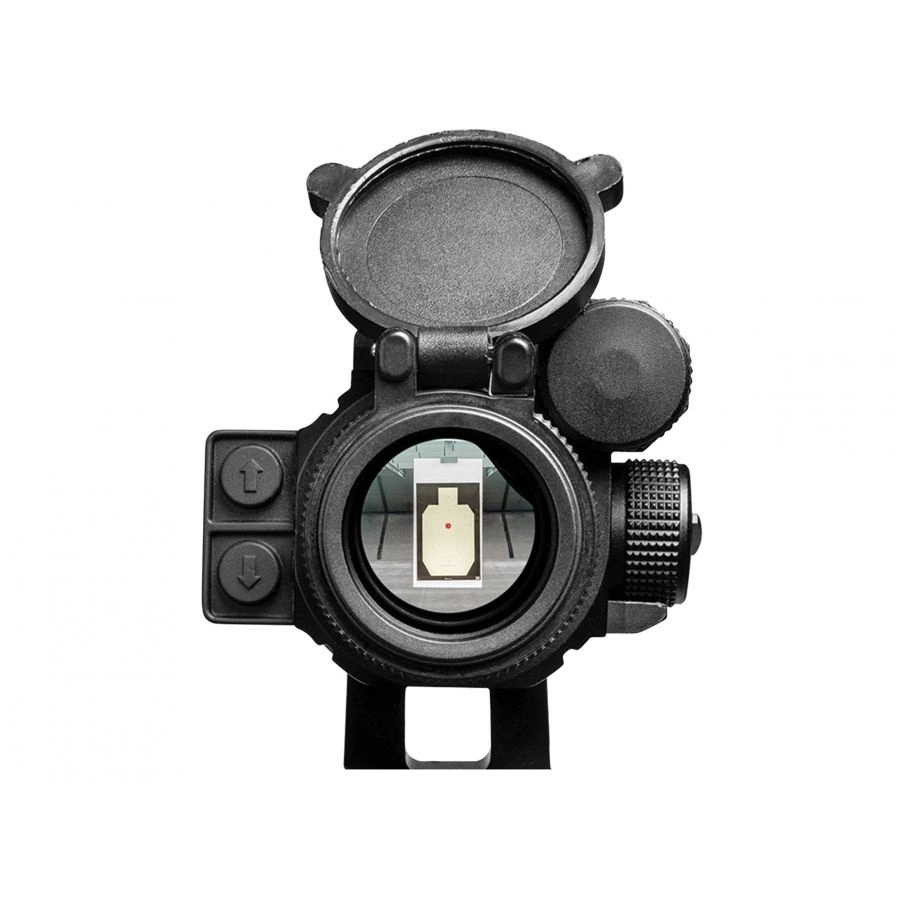

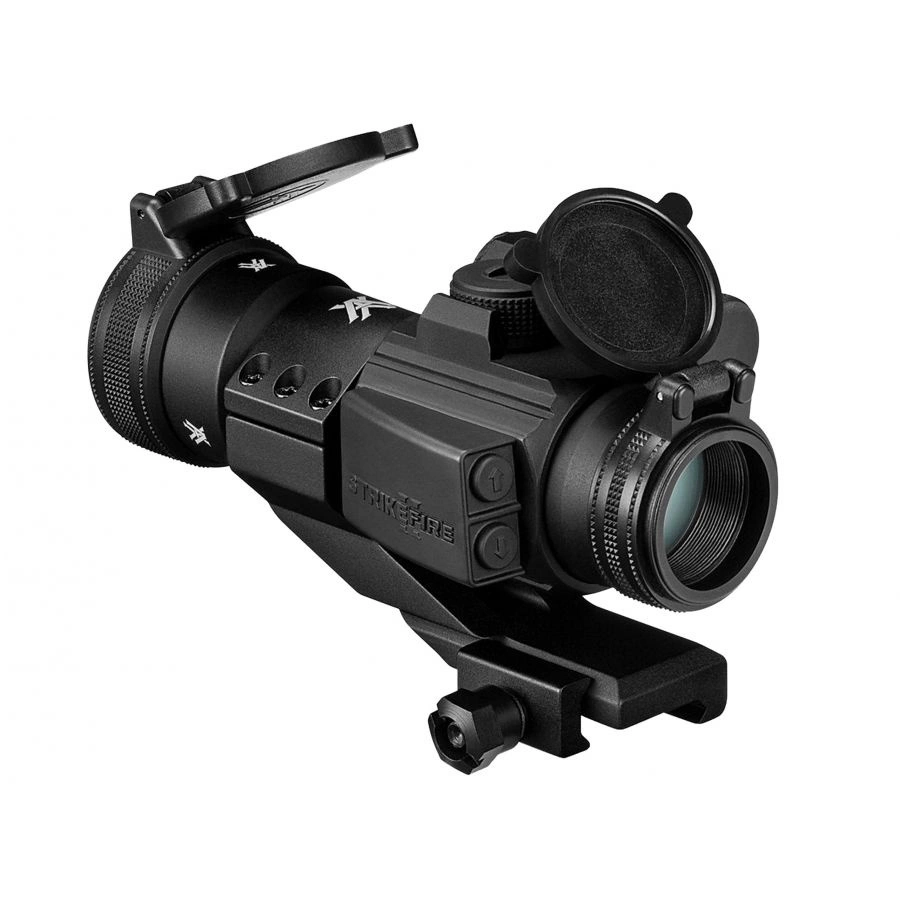

- To turn on/off and change the brightness of the dot rubber buttons marked with arrows. The buttons are conveniently located on the left side of the eyepiece, so we can perform all the steps involved in changing settings without taking our eyes off the target.
- Long working time
- The collimator is powered by a CR2 battery that provides up to 8,000 hours of operation at setting 6. The collimator owes its long operating time to the the use of an automatic switch, which disables the viewfinder after 12 hours.
Assembly
- The kit comes with a "lower 1/3 co-witness" angle mount for a 22 mm rail. When installed on an AR-type platform, the collimator dot is about above the aiming instruments, and the optical center is 40 mm above the mounting rail.
- Dual-use products are goods that are used in the civilian and military sectors. Their export from Poland is subject to strict regulations aimed at preventing their use in weapons production and threats to international security.
- Poland has strict export control regulations in line with international agreements governing the export of dual-use goods. The export of these goods, which can be used in military technologies or support the development of armaments, requires special licenses.
Basic data
Filling gas
NitrogenSpot color
redType of aiming crosshairs (reticles)
spot
Power supply
Cell power supply
cR2 lithium battery
Additional data
Maks. vertical (height) adjustment [MOA]
100Maks. horizontal (supply) adjustment [MOA]
100Housing material
anodized duralumin according to. MIL-SPECOffset at full rotation [MOA]
25Spot size [MOA]
4
Dimensions
Overall length [mm]
142Weight [g]
204Tube diameter [mm]
30 mm (1.18″)
Included
Elements of the collimator set
picantinny mounting,optics cleaning cloth,glass lids,battery
Warranty
Warranty period
VIP lifetime warranty* from Vortex Optics
Manufacturer information
Manufacturer
Vortex Optics, USASupplier Symbol
SF-BR-504
