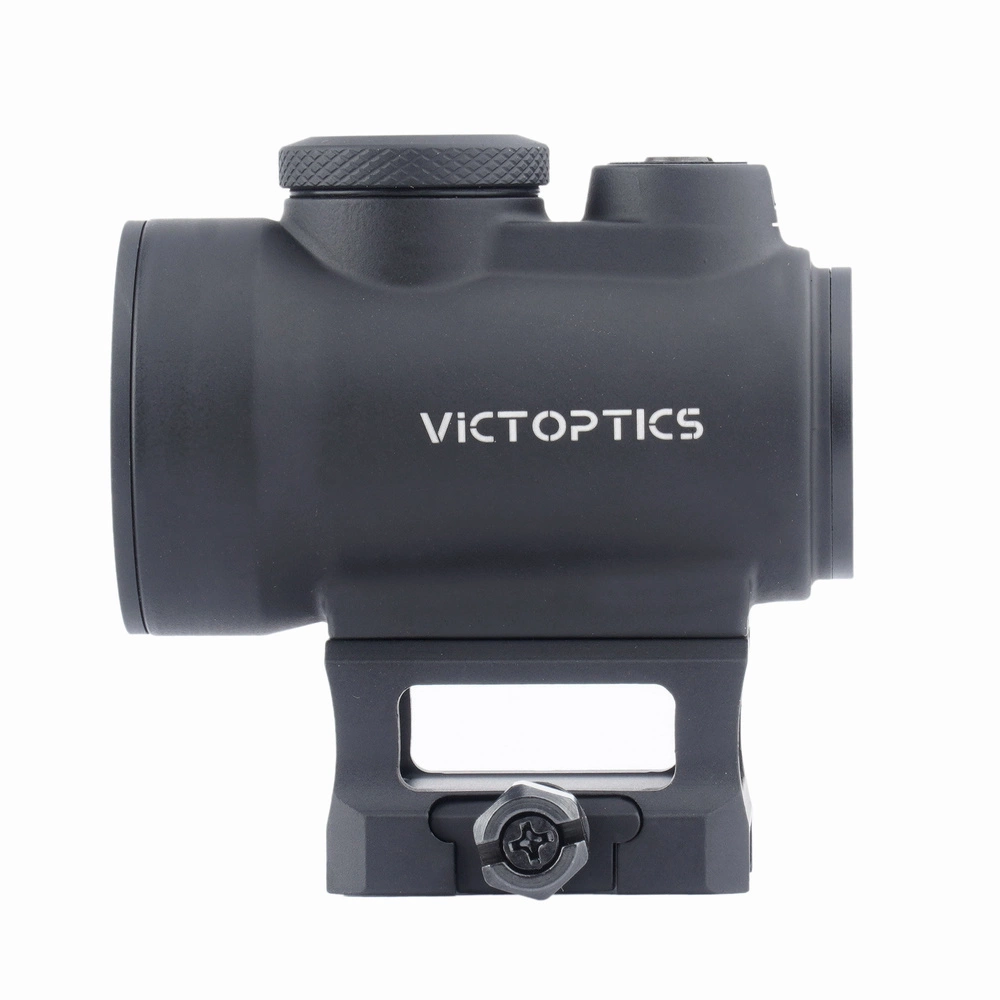

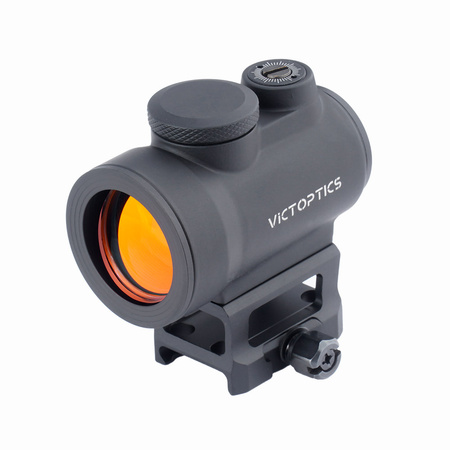

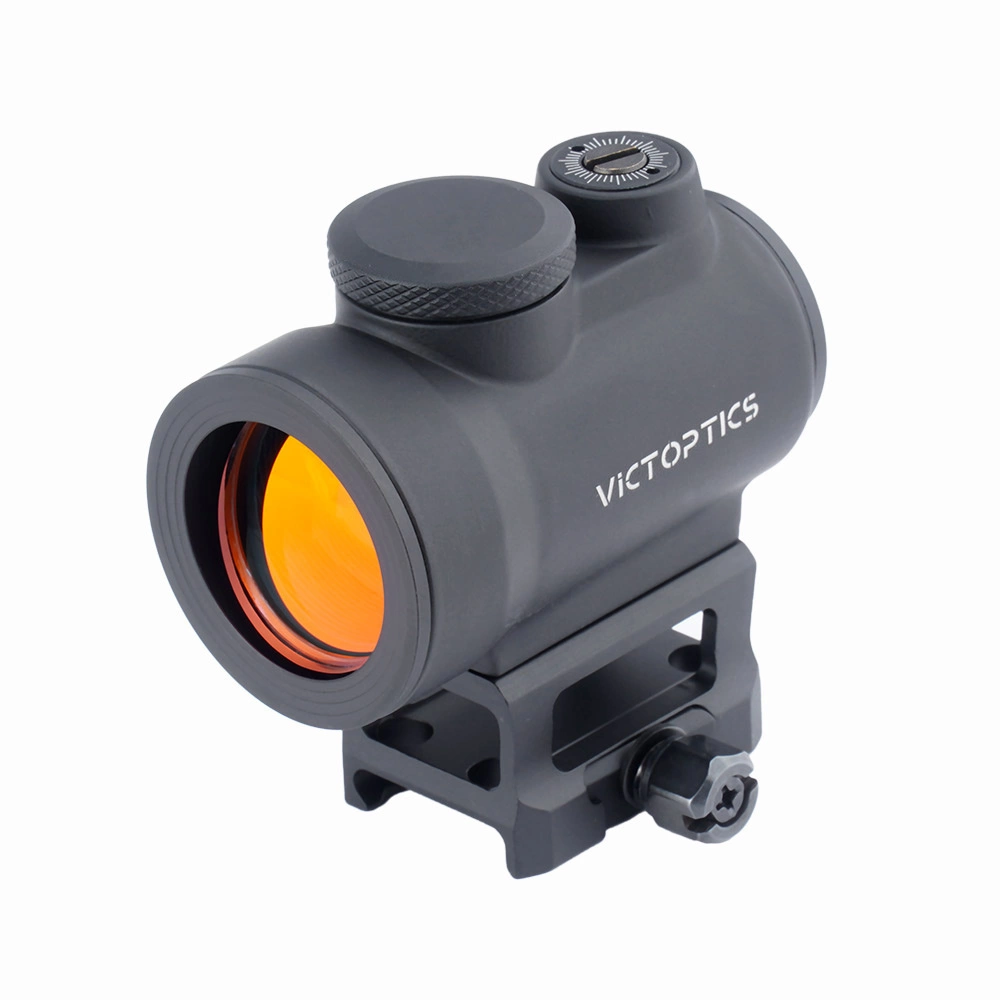

Victoptics - Weaver SRD 1x30 closed mount collimator - 3 MOA - Black - RDSL37
Lightweight SRD enclosed collimator with 30mm lens from Victoptics. It comes with two Weaver rail mounts, one low and one medium, which will allow the user to adjust the aiming line as needed. Both mounts are compatible with Picatinny mounting rails. The body of the collimator and its mounts are made of 6061-T6 aluminum alloy.
A 3 MOA size red dot was used for targeting. It can be adjusted vertically and horizontally within 90 MOA by one MOA per click. The 1x magnification makes it a sight for use primarily at short range, but thanks to the 3 MOA dot, it can also be used at medium ranges of 100 meters.
The brightness of the aiming point can be adjusted in 7 degrees for daylight mode and only one for night vision. Adjustment is made via rubberized buttons on the side of the case. The open adjustment turrets are easily accessible, allowing you to quickly make the desired adjustment. The CR2032 battery compartment is located on top of the case under the cap.
Features:
- SRD collimator with Weaver and Picatinny rail mounts
- Adjustable brightness in 7 degrees in daytime mode and one for night vision
- Uses a red dot size of 3 MOA for targeting
- Housing and mounting made of 6061-T6 aluminum alloy
- Low mount for Weaver rail that is compatible with Picatinny
- Body resistant to shocks of up to 750 G
- High range of aiming point adjustment
- Exposed turrets to be adjusted
- Mounting on the rail based on a nut type bolt

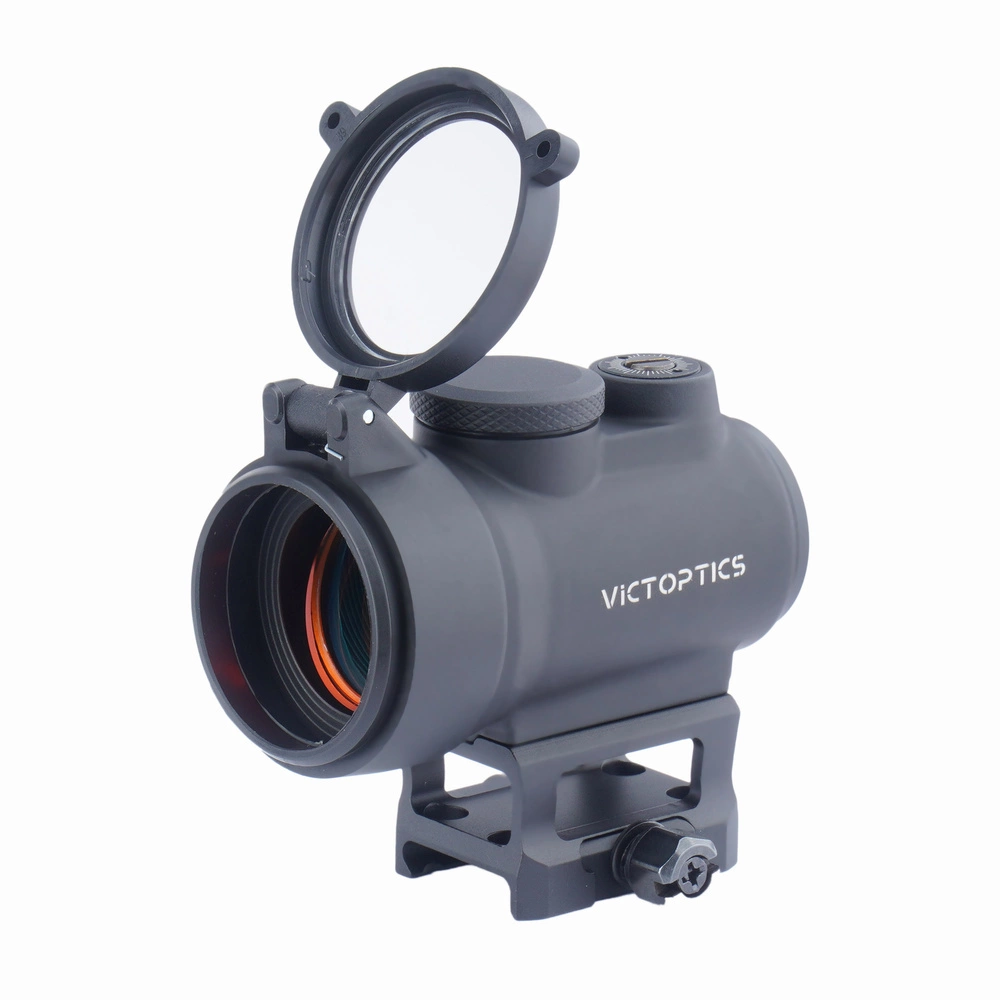

- Retractable sight lens cover

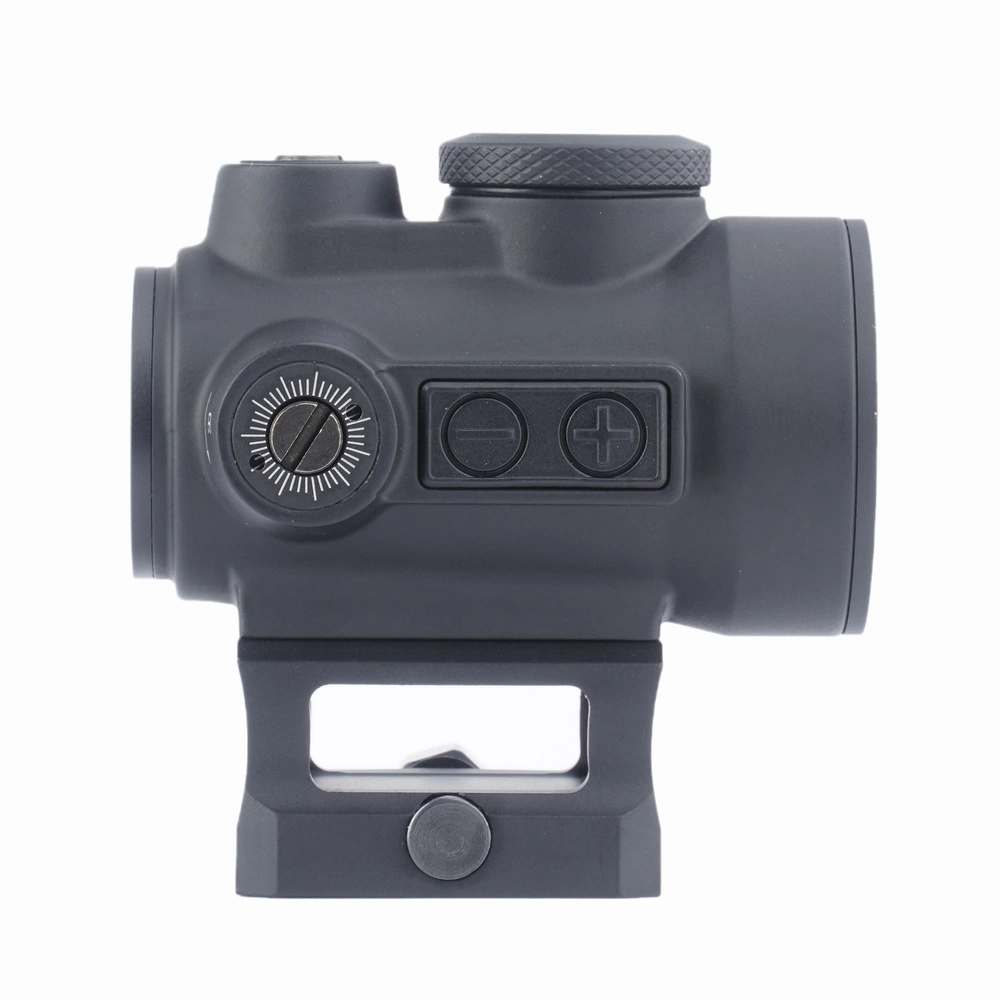

- Adjust the brightness of the viewfinder with rubberized buttons on the side of the case
| Technical data | |
|---|---|
| Assembly | Picatinny/Weaver |
| Enlarge | 1x |
| Lens diameter | 30 mm |
| Type of aiming point | Dot |
| Size of the aiming point | 3 MOA |
| Color of the aiming point | Red |
| Leakage class | IPX4 |
| Brightness adjustment | 7 degrees in daytime mode 1 stage for night vision |
| Vertical/horizontal adjustment range | +/- 90 MOA |
| The value of a clique | +/- 1 MOA |
| Power supply | CR2032 battery |
| Working time | up to 20,000 h |
| Operating temperature | -20°C to 60°C |
| Dimensions | 70 x 40 |
| Material | Aluminum 6061-T6 |
| Weight | 162 g |
| Color | Black |

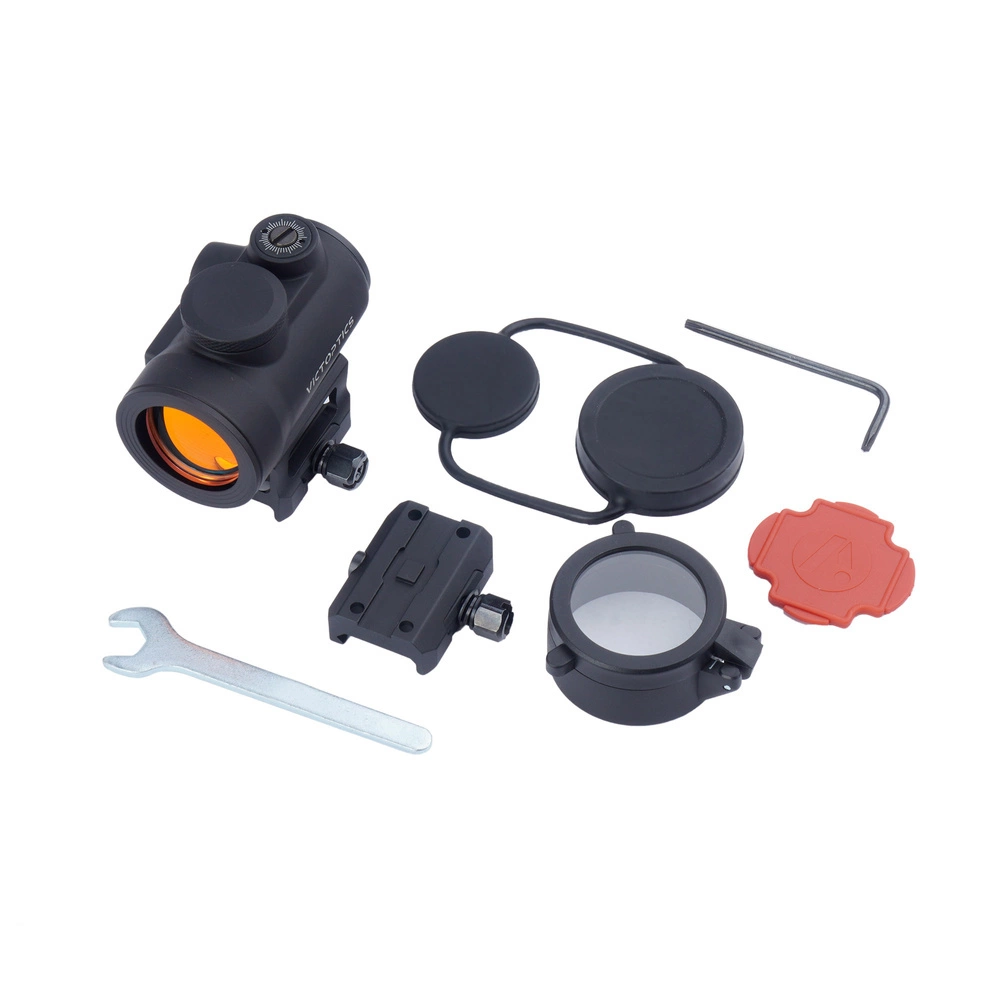

Kit components:
- SRD 1x30 collimator
- Weaver medium assembly
- Weaver low mount
- Lens cap
- Wrench for adjusting the sight
