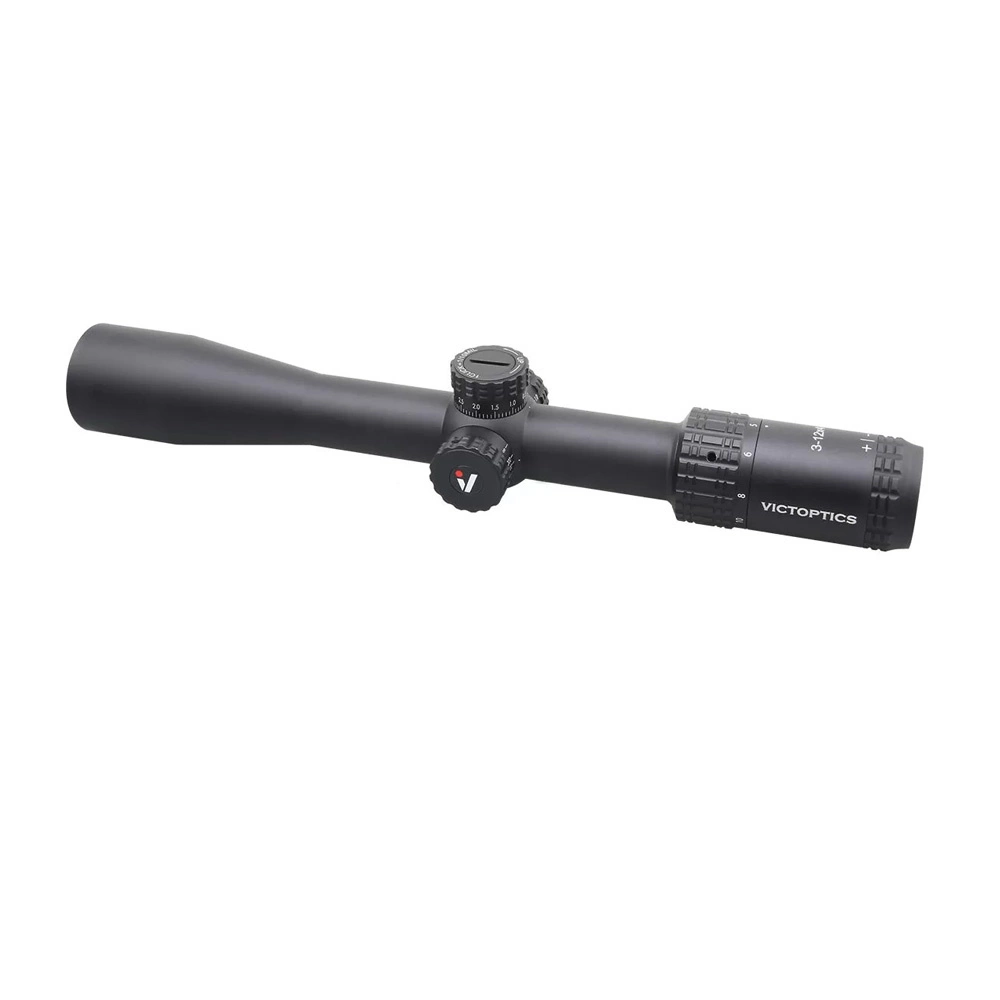

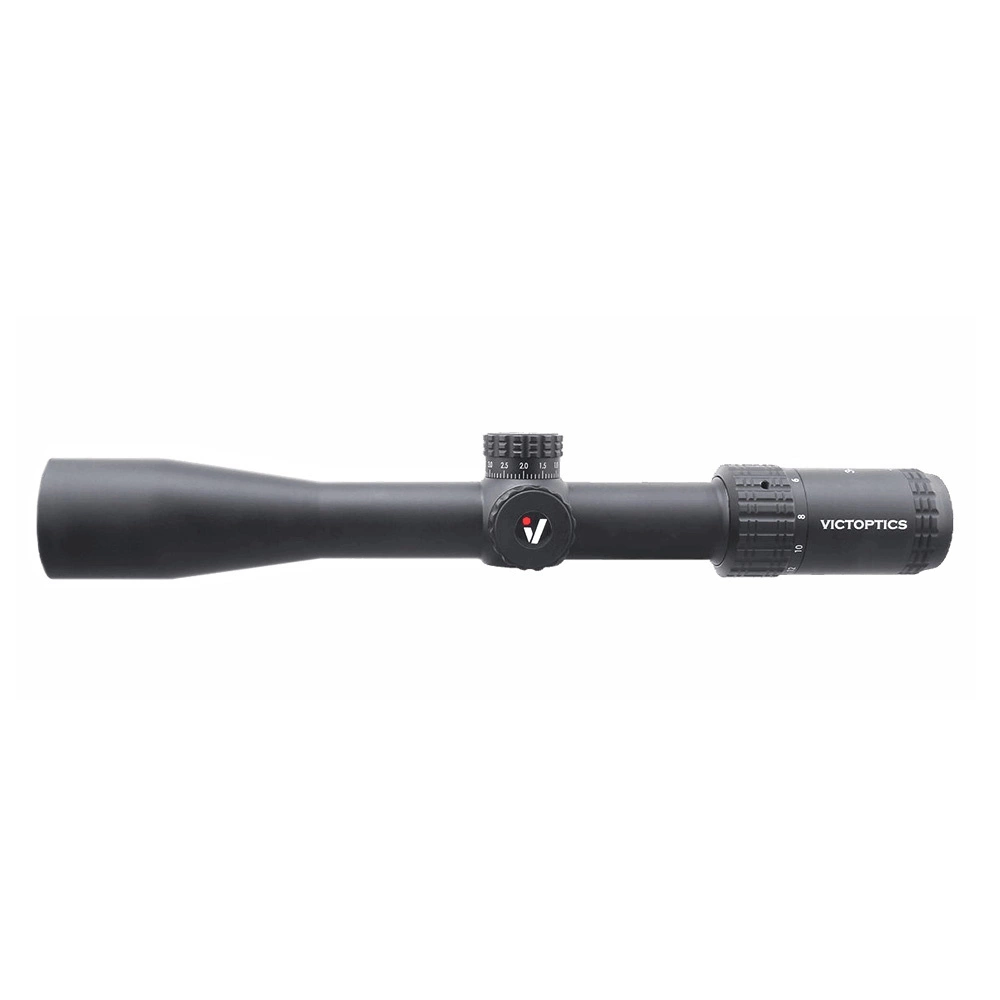

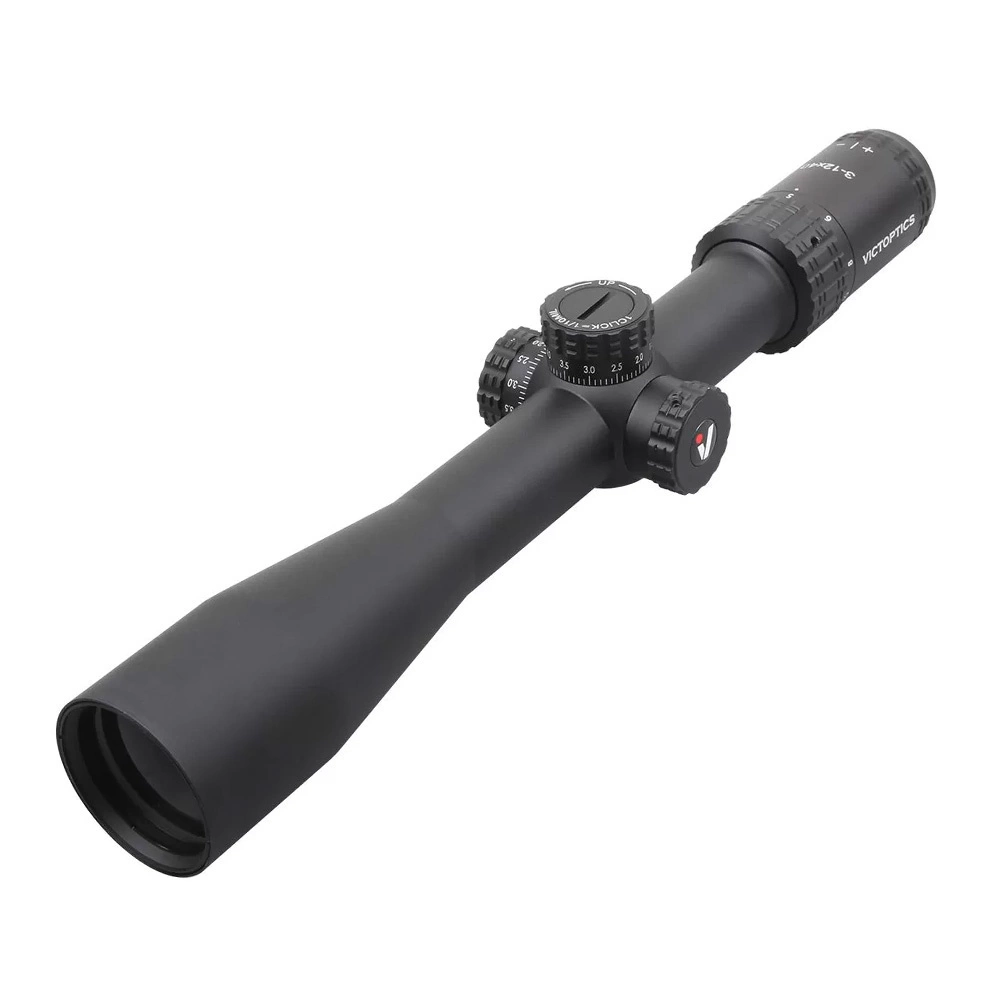

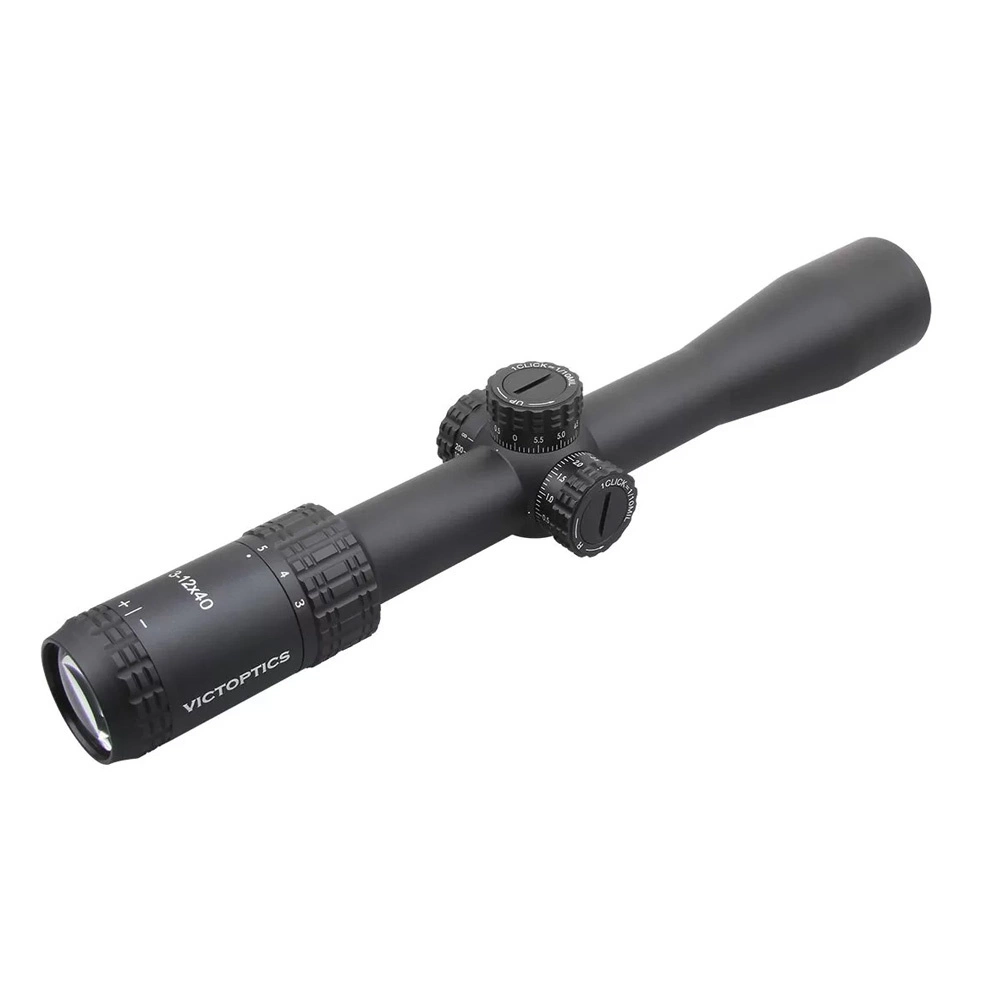

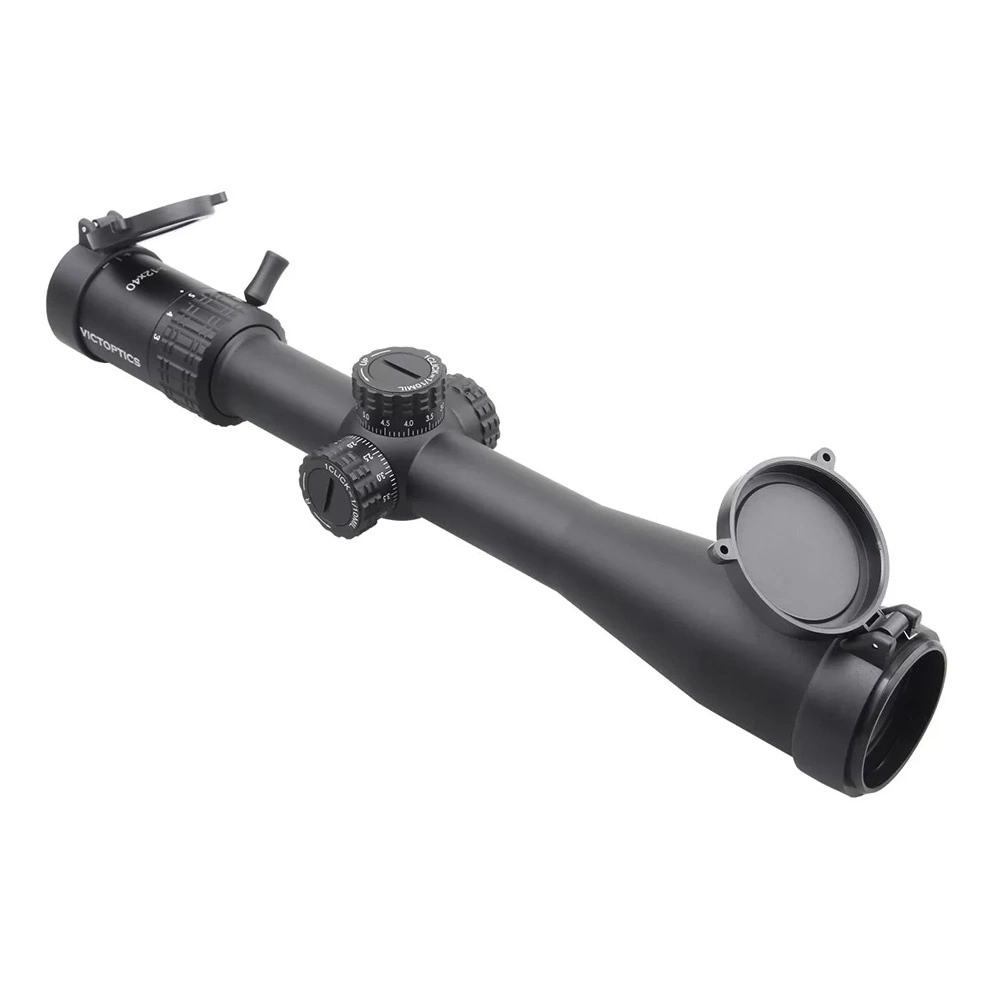

VictOptics - S4 3-12x40 SFP rifle scope - MDL - Black - OPSL31
Simple S4 scope with variable magnification from 3x to 12x with etched MDL reticle from VictOptics. Its design was developed primarily for use on air rifles or ASG replicas, but it can be used successfully on side-firing weapons in calibers up to .22 LR without loss of settings due to recoil or tossing.
The housing is made of 6061-T6 aluminum, inside of which is a 40mm glass lens with FMC coating. This design provides a field of view of 13.3 m at a distance of 100 m at 3x magnification. At a maximum magnification of 12x, it will naturally be a smaller field, but in return the user will gain a more precise image of the selected area.

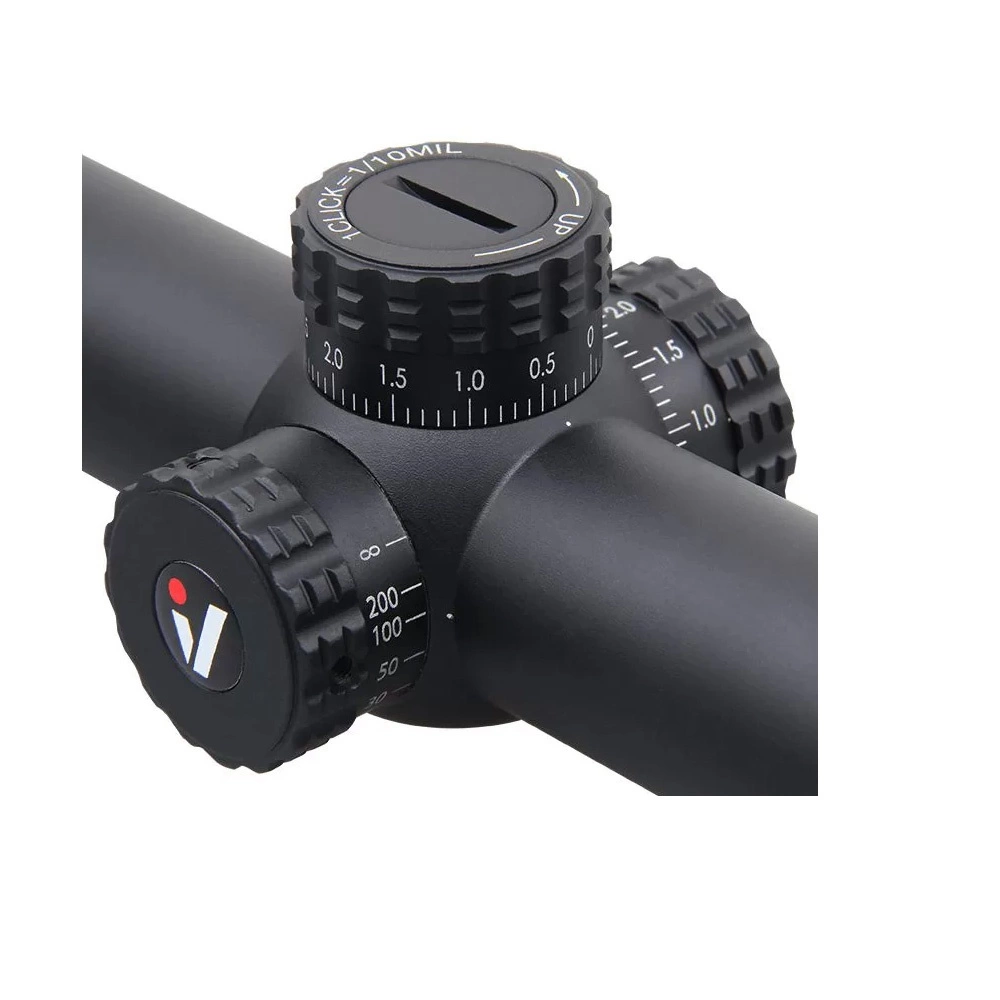

Turrets with adjustment drums are exposed with textured knob. This allows for quick corrections of 18 MIL vertically and horizontally by 1/10 MIL per single click. Even when the scope's lenses are regularly covered with caps, it's a good idea to keep them clean for a clear image using dedicated optics cleaning tools.

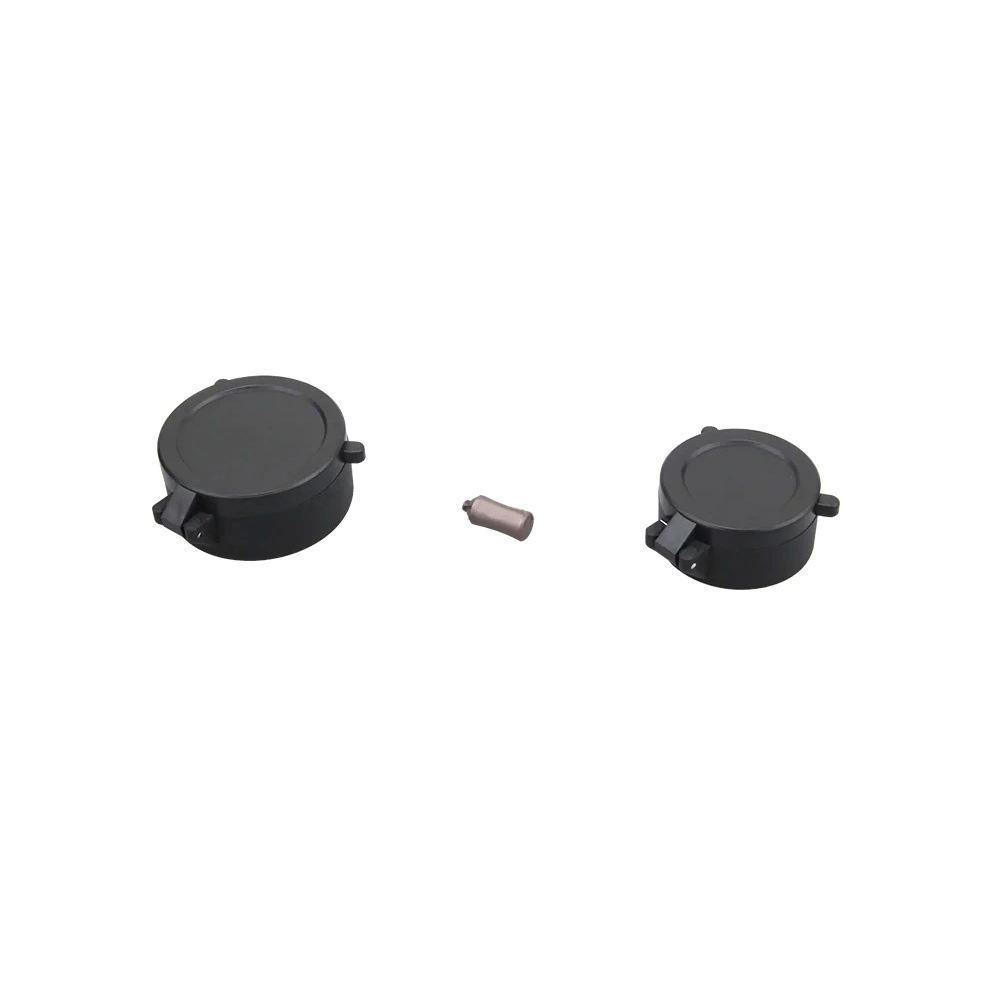

The scope can be mounted on a Weaver rail and thus a Picatinny rail via two rings attached to a 30 mm diameter tube. A wide set of add-ons for the viewfinder allows both lens and glass protection, but also smooth adjustment of the optics focus. The scope's glass will not evaporate even in harsh weather conditions thanks to its nitrogen-filled housing.
Features:
- S4 rifle scope for air rifles, ASG replicas and weapons in calibers up to .22 LR
- Wide 40mm diameter lens
- Variable magnification, adjustable from 3x to 12x

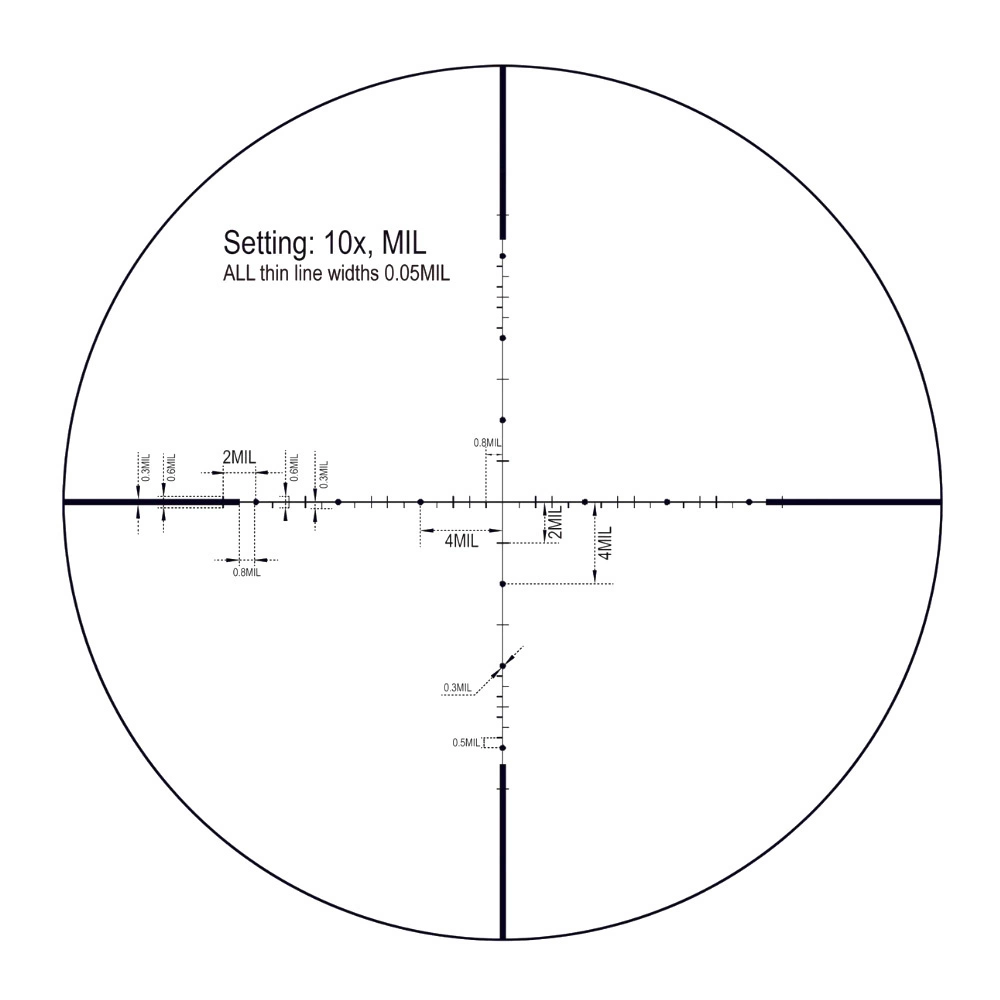

- MDL etched target reticle with Mildot type crosshairs
- Grid does not change scale with zooming which makes it easy to make corrections
- Body made of 6061 T6 aircraft aluminum
- Nitrogen filling reduces the effect of lens evaporation
- Horizontal and vertical aiming crosshair adjustment 18 MIL
- Adjustment by 1/10 MIL per click
- Mounted on a Weaver rail using two rings for a 30 mm tube
| Technical data | |
|---|---|
| Lens diameter | 40 mm |
| Tube diameter | 30 mm |
| Enlarge | from 3x to 12x |
| Field of view at 100 m | from 13.8 to 0.5 m |
| Targeting reticle | MDL |
| Grid position | SFP (Second Focal Plane) |
| Assembly | Weaver |
| Vertical and horizontal adjustment range | 18 MIL |
| Single click | 1/10 MIL |
| Output pupil offset | 12 to 3.3 mm |
| Distance from the eye | 96 mm |
| Scope material | Aluminum 6061-T6 |

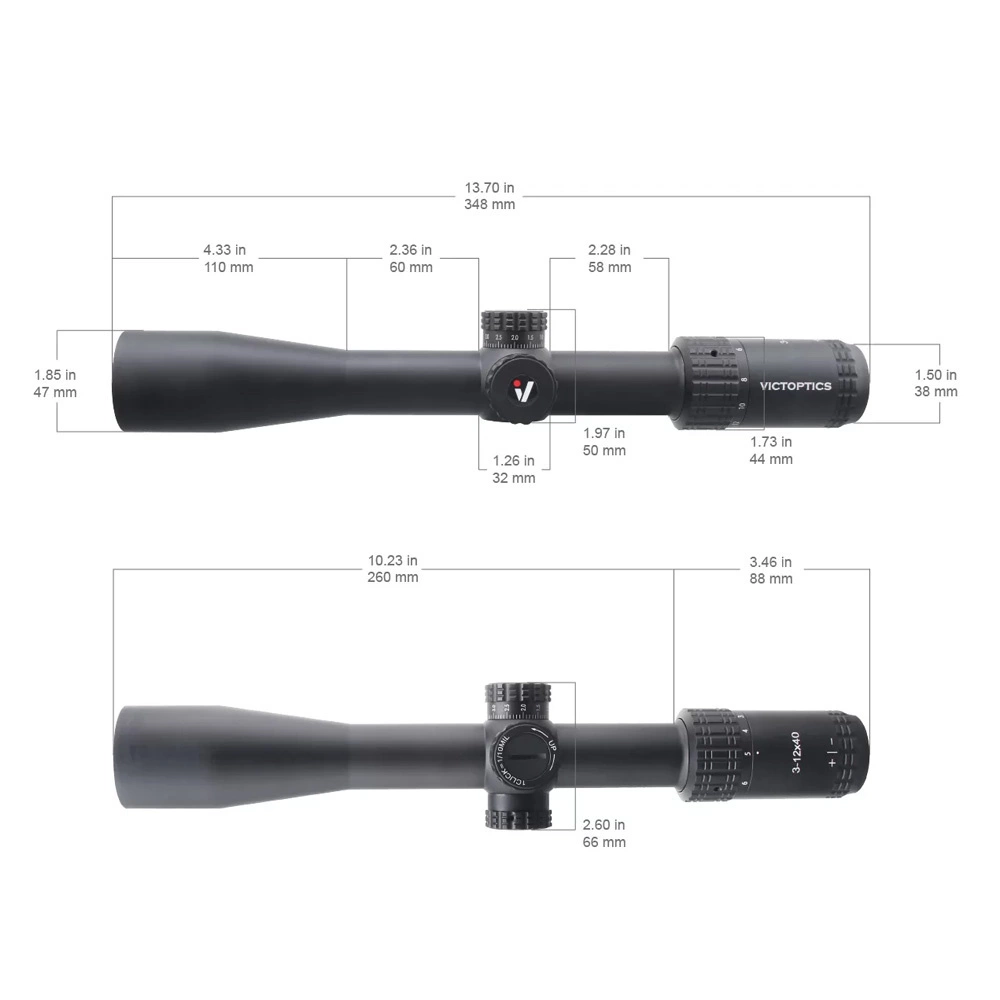

| Length | 348 mm |
| Weight | 500 g |
| Color | Black |
Kit components:
- S4 telescope
- Weaver rail mounting
- Large wheel for focus adjustment mechanism
- Soft cloth for cleaning optics
- User Manual
