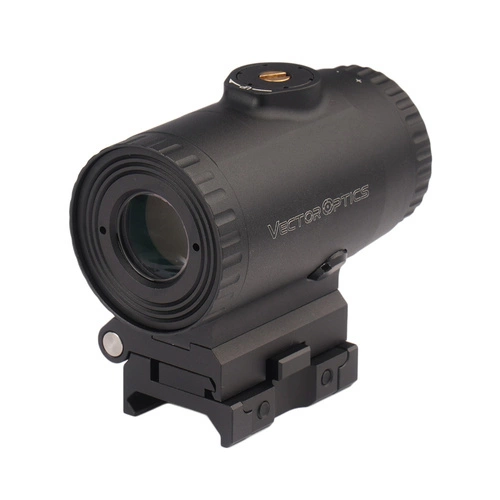

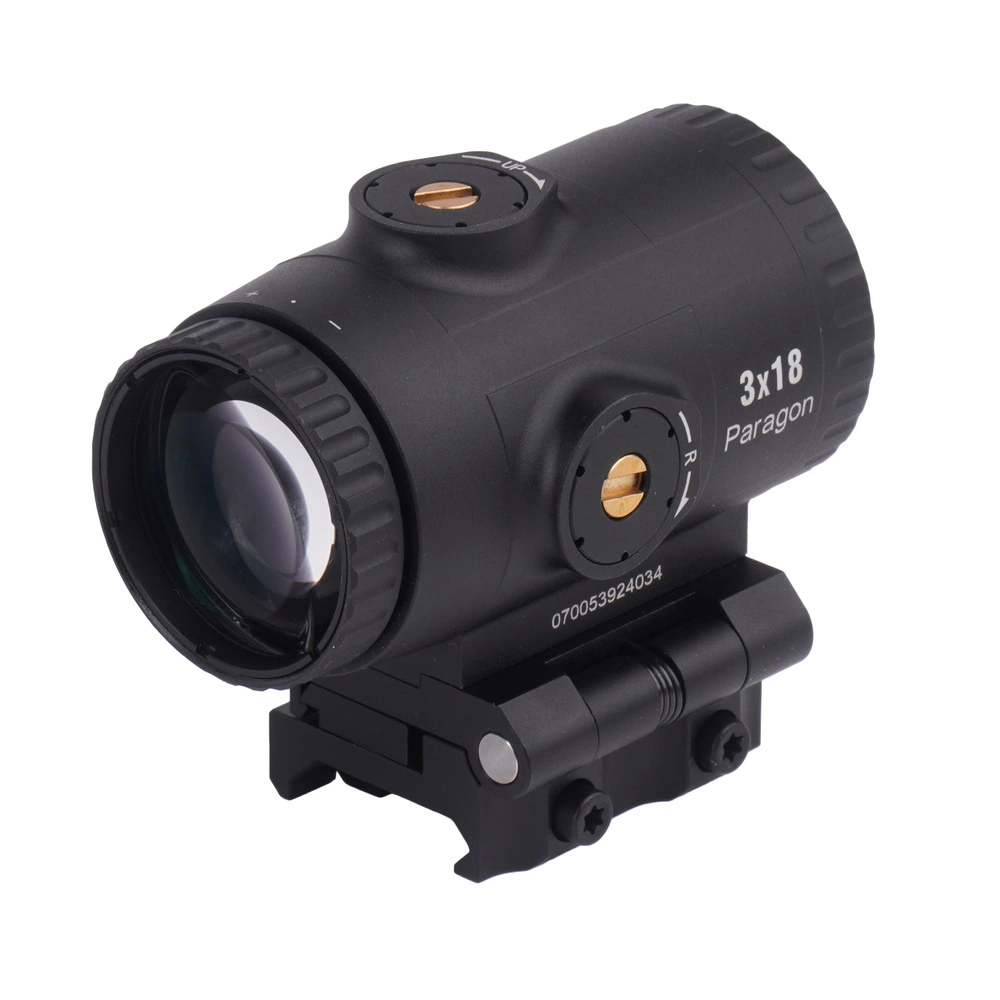

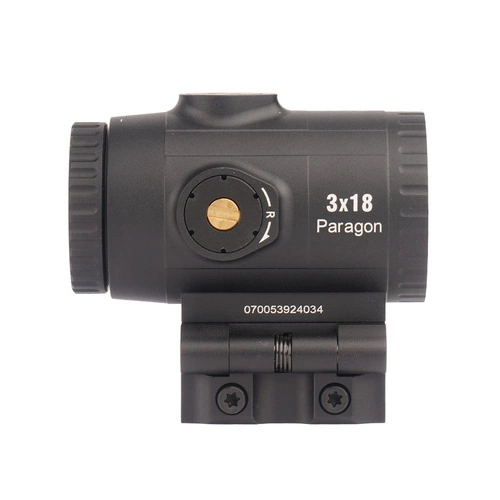

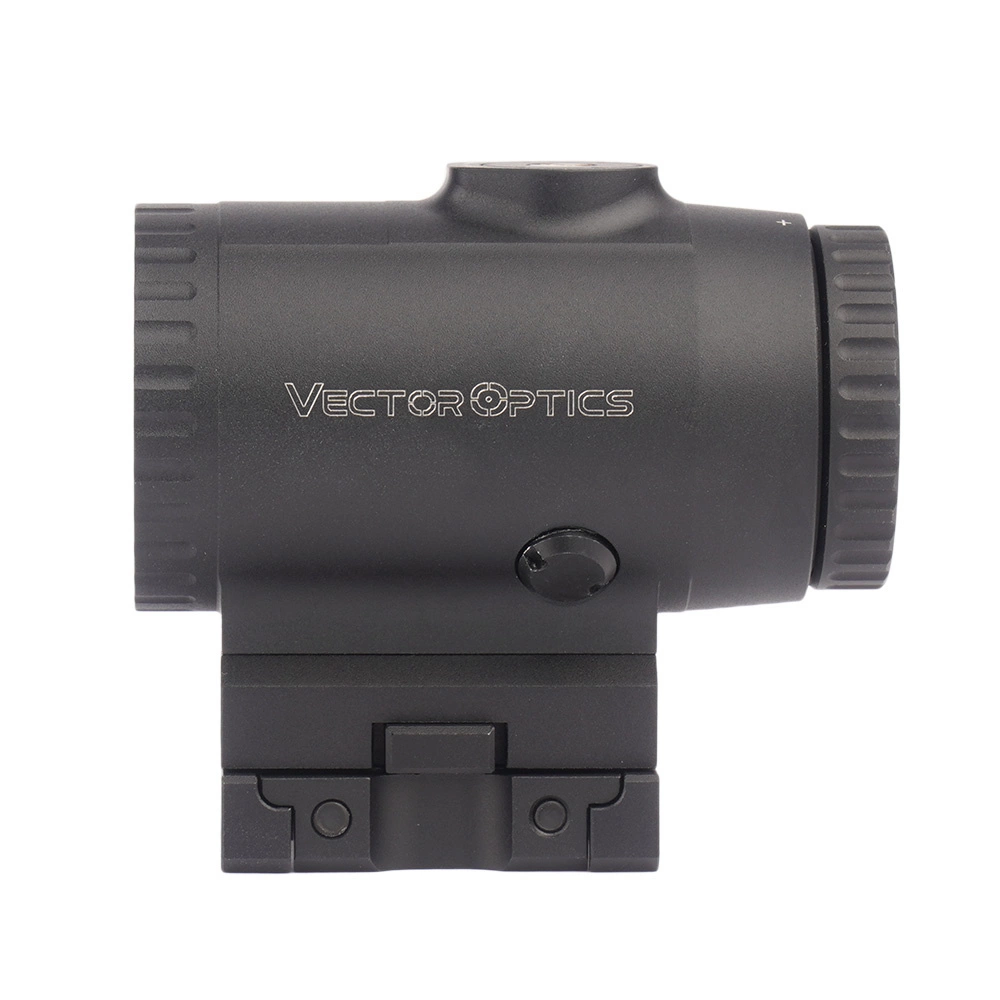

Vector Optics - Paragon 3x18 Micro Magnifier - Black - SCMF-33
The Paragon 3x18 Micro Magnifier from Vector Optics features multi-layer optics with anti-reflective coatings. Designed to help with precision aiming from a medium distance. Magnifier provides three times fixed magnification, clear image and wide viewing angle (7.4°). Its housing is made of 6061-T6 aluminum with matte anodization to nullify glare and protect against damage.
The design is shockproof and IP67 rated. This means that the enlarger is completely waterproof when submerged to a depth of 1 meter for up to 30 minutes. Integrated Picatinny QD rail mount allows you to quickly tilt the magnifier sideways and return to view through the collimator without disassembly.
Thanks to the comfortable exit pupil distance (67 mm), the device can be adjusted to the individual user's needs. A 5mm elevation is also included to increase compatibility with various collimators. Paragon 3x18 Micro magnifier complements collimator sights. Helps increase shooting accuracy both at the range and in tactical operations.
Features:
- Durable enlarger made of 6061-T6 aluminum
- Equipped with multi-layer optics with anti-reflective coating
- Angular field of view of 7.4°
- Three times fixed magnification
- Waterproof at a depth of 1 meter for up to 30 minutes (IP67 rating)

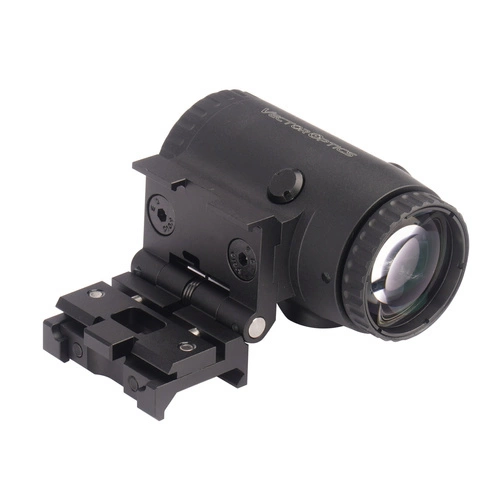

- Picatinny rail mounting with Flip-to-Side function
- Dioptric adjustment from -2 to +2
| Technical data | |
|---|---|
| Enlarge | 3x |
| Length | 70 mm |
| Lens diameter | 18 mm |
| Output pupil diameter | 6 mm |
| Output pupil distance | 67 mm |
| Viewing angle | 7,4° |
| Optics coating | Multilayer (FMC) |
| Body material | Aluminum 6061-T6 |
| Assembly | Picatinny |
| Dioptric adjustment | +/-2 |
| Leakage class | IP67 |
| Weight | 215 g |
| Color | Black |

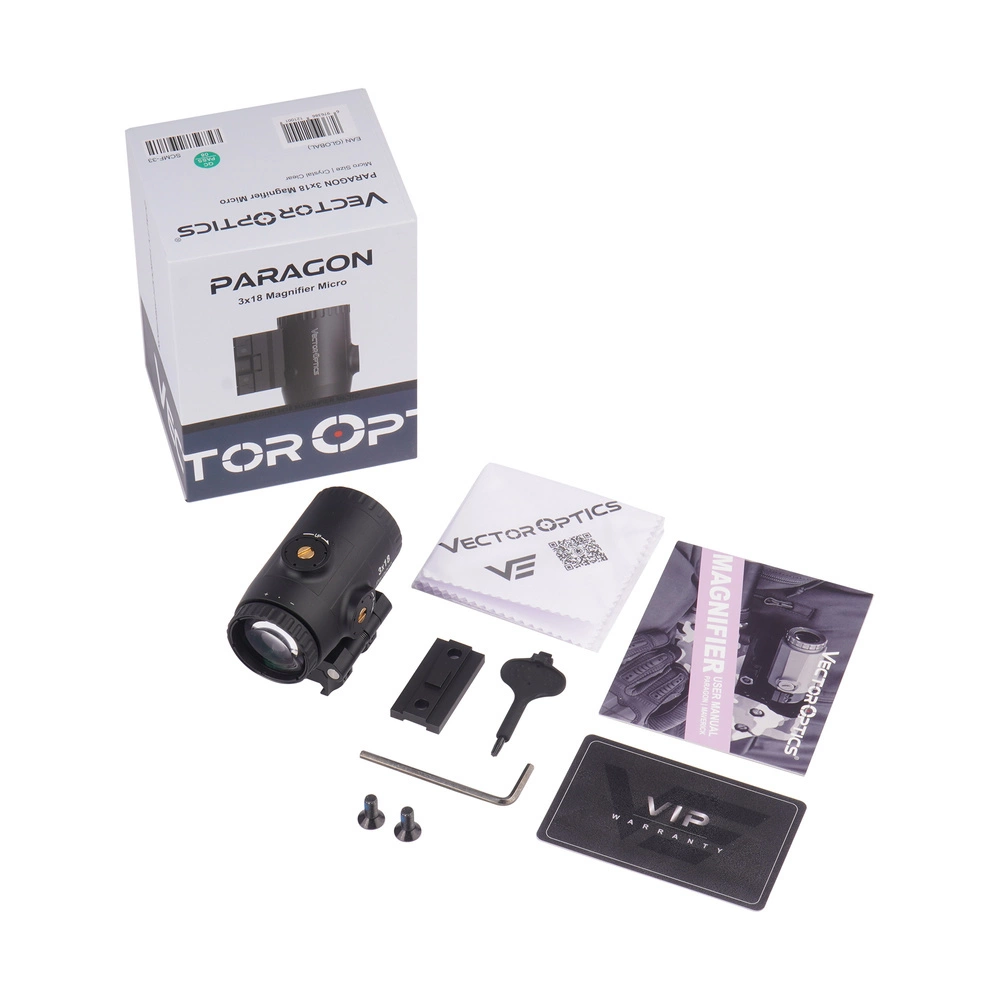

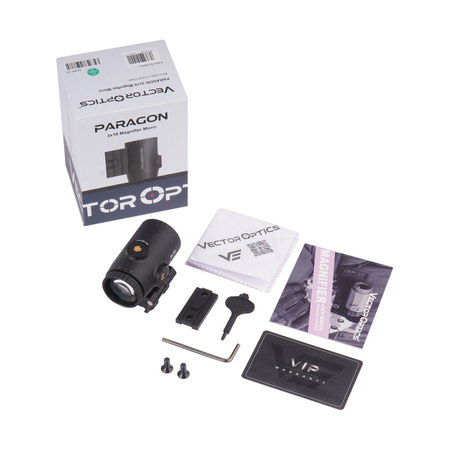

Kit components:
- Magnifier
- Picatinny rail mounting adapter
- Increase of 5 mm
- Set of keys for installation
- Cloth
- User Manual
