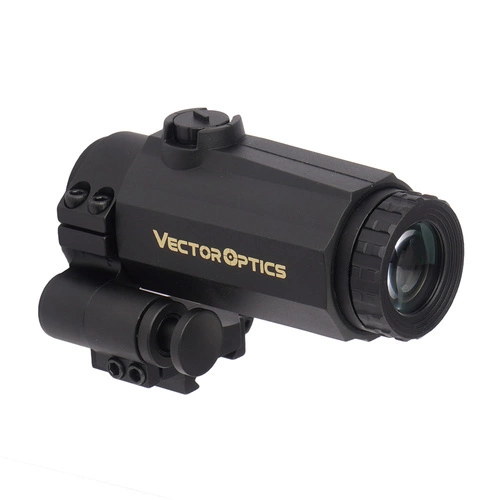

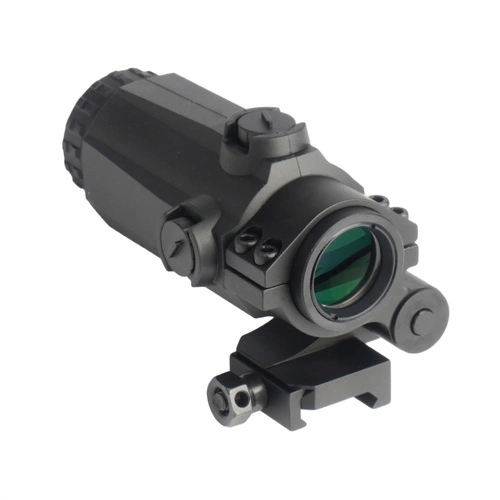

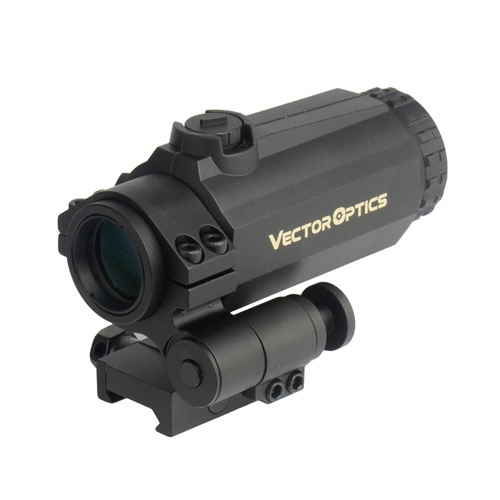

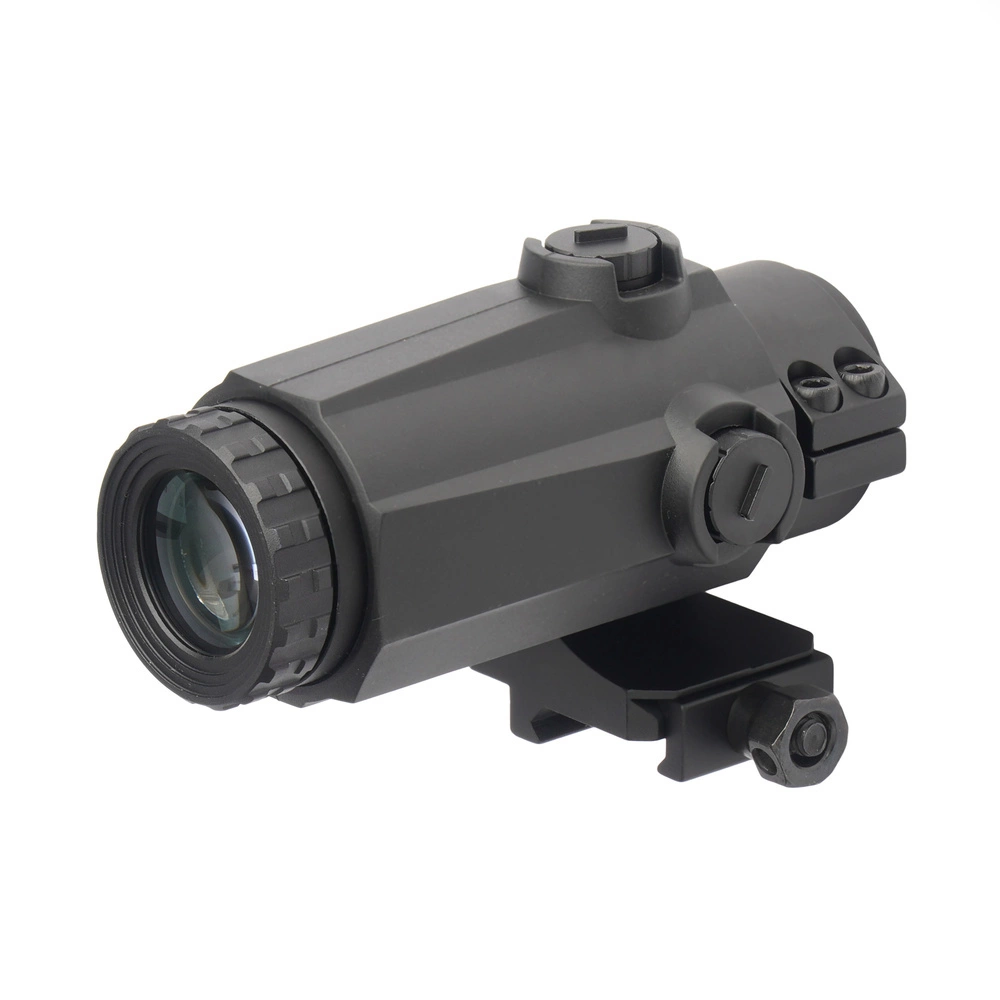

Vector Optics - Maverick III 3x22 Magnifier - MIL - Black - SCMF-31
Vector Optics Maverick III is an enlarger designed to work with Picatinny rail mounted collimators. Provides three times magnification with a wide field of view - about 18 m at 100 m. Such a wide range allows you to observe and fire at medium distances without losing your orientation in the field.
The optical system uses lenses with multi-layer FMC coating to improve light transmission and reduce reflections. Eye distance of 70 mm allows for comfortable use in eye protection even with higher recoil.
The tube is made of 6061-T6 aluminum and coated with a layer of rubber for increased impact resistance. Included is a flip-to-side mount with a locking mechanism (Vector Optics SCTM-17) that allows you to quickly switch between working with and without magnification without changing the position of the viewfinder. Mount height (36 mm) allows the enlarger to be compatible with many models of collimators.
Features:
- Magnifier made of 6061-T6 aluminum with rubberized surface
- The design of the device increases shock and impact resistance
- Clear image without tunnel effect thanks to 7 mm exit pupil
- Pupil offset of 70 mm allows comfortable use with strong weapon recoil
- The material of construction provides impact and shock resistance
- FMC coating improves light transmission and reduces reflections
- Picatinny rail flip-to-side mount included in the kit
Technical data | |
---|---|
Enlarge | 3x |
Lens | 22 mm |
Distance from the eye | 70 mm |
Field of view | approximately 18 m by 100 m |
Length | 103 mm |
Material | Aluminum 6061-T6 Rubber |
Lens coating | FMC |
Mounting profile | High |
Mounting height | 36 mm |
Mounting type | Picatinny |
Weight with assembly | 290 g |
Color | Black |
