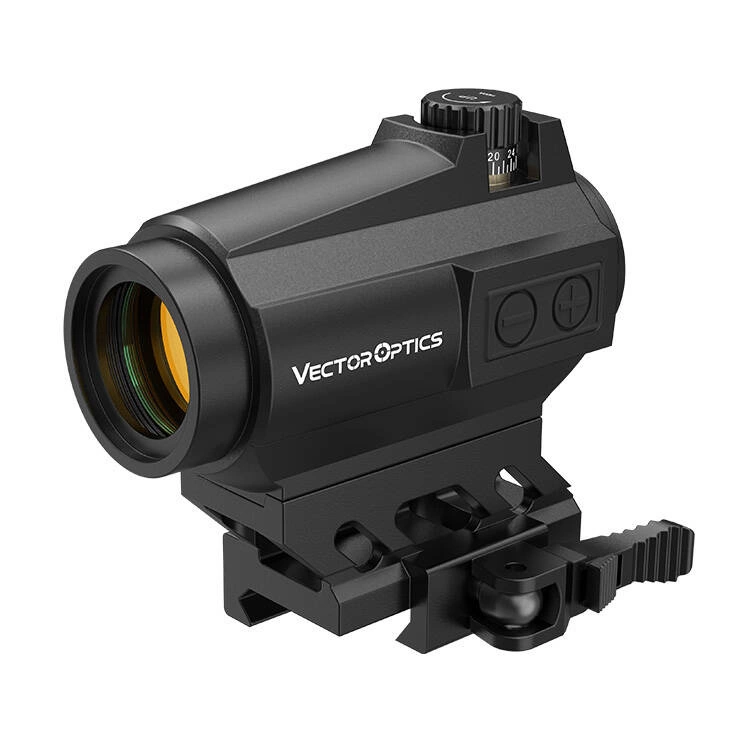

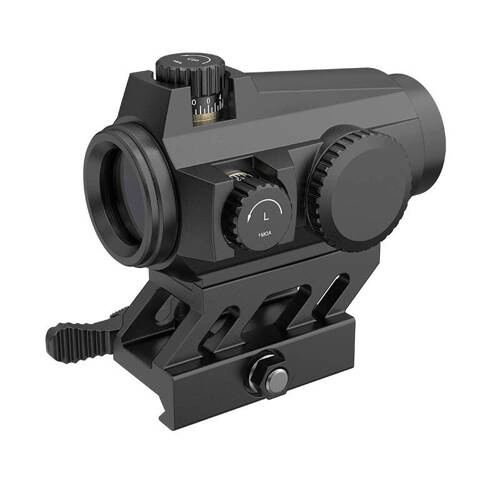

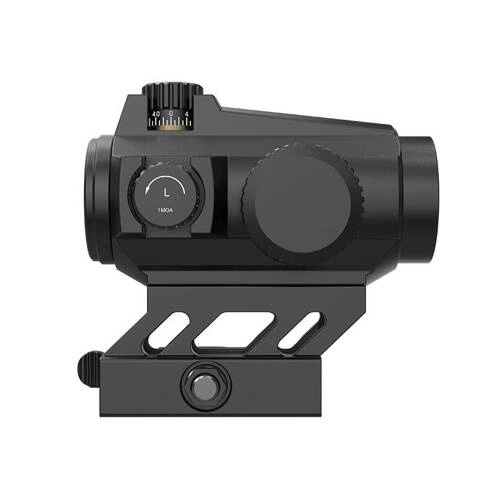

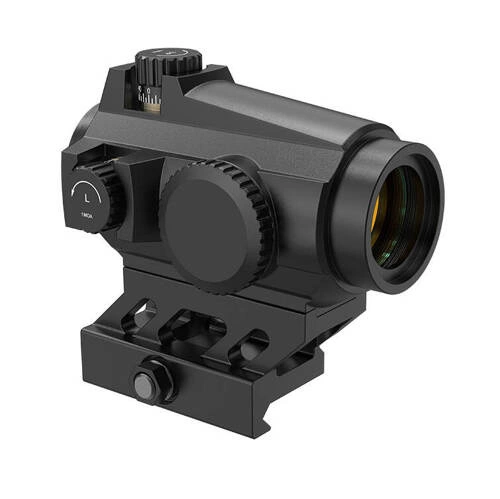

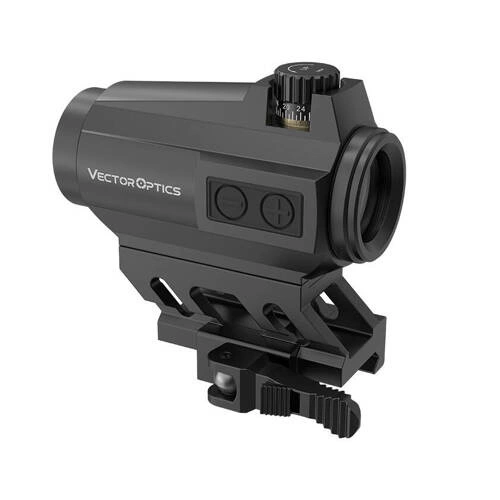

Vector Optics - Maverick-II Plus 1x22 DBR closed collimator - RDS - Picatinny - QD - SCRD-PD12

Closed collimator with 2MOA size red dot and target circle.

Viewfinder with standard as well as additional high mount, designed for AR platform weapons. The collimator owes its strength to being made of 6061 T6 aluminum alloy. The collimator has IPX4 class water resistance, so it can be used in harsh weather conditions.

The collimator lens has been multi-coated for increased durability against damage and better visibility performance. Such a manufactured lens eliminates the apparent deviation of objects and other distortions. In addition, the inside of the viewfinder has been filled with nitrogen to prevent lens evaporation. At the same time, it is worth taking care of the maintenance of the whole, which can be helped by a gun cleaning kit.

The sight is powered by a single CR2032 battery, which is replaced from the side by unscrewing the appropriate nut. Thanks to this solution, the settings will not be upset when changing batteries. The sight mounting uses the QD - Quick Discharge system. It allows efficient assembly and disassembly without the use of tools. Low mounting uses screws instead of QD levers.

The Maverick-II Plus has been fitted with a motion sensor for greater control over the operation of the viewfinder. This sensor will automatically turn off the viewfinder after a prolonged period of no change in position saving the battery for later. The viewfinder can be adjusted with dials in the range of +-60MOA, where one click is 1MOA. The sight has shock resistance. The sight on the high mount is in 1/3 Co-witness arrangement.

The collimator can operate in a temperature range of -20°C to +55°C. The sight has a 22mm diameter target lens. Its overall design makes for a precise aiming device with comfortable tool-free operation for the high-mount version. The collimator has 8 levels of brightness adjustment for the viewfinder dot and one level for night mode.

Features:

• Closed collimator with high mount
• It has an additional low profile mount that does not interfere with the use of the sight
• Three targeting modes - dot, dot with circle, circle
• Red 2MOA size aiming point and aiming circle
• Powered by a single, easily replaceable CR2032 battery
• 6061 T6 aluminum construction
• IPX4 waterproof design
• Picatinny rail mounting kit
• Motion sensor to control collimator
• It has shock resistance

splitter

Kit components:

• Maverick-II Plus 1x22 DBR closed collimator
• Picatinny QD high mount
• Picatinny low mount
• Allen wrench
• Screws
• Lens hoods
• Cleaning cloth
