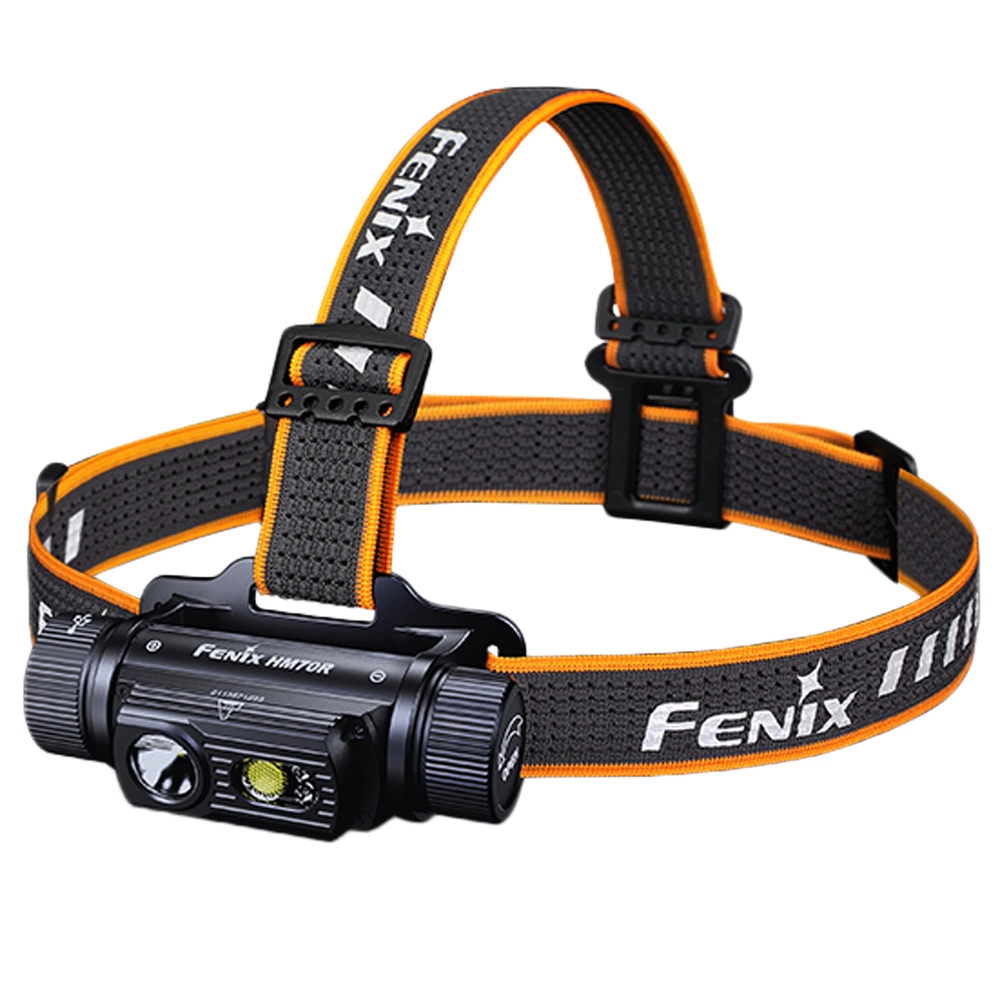

Fenix HM70R headlamp flashlight
Fenix HM70R headlamp flashlight
Fenix HM70R is a a high-quality, durable and powerful headlamp, to which it is hard to find a competitor. The flashlight is made entirely of metal and features 3 LEDs of different colors. In the highest mode of operation, the headlamp emits a light output of 1600 lumens and has an impressive range of up to 186 meters. One of the most capacious 21700 batteries, on which the flashlight can work up to 100h. Built-in port USB- C allows you to charge this capacious battery in just 4h. In addition to its metal construction, 3 LEDs in different colors, extraordinary power and super-powerful battery, the Fenix HM70R also boasts a iP68-rated waterproof housing,battery charge level indicator and an armband with reflective elements.
Here are the most important features of the FeniX HM70R head flashlight:
- Powered by a high-powered battery: 21700 500 mAh
- light output max 1600 lumens
- light with 3 colors: white, neutral and red
- large and practical on/off switch with lock function
- lED battery charge level indicator
- 180° light angle adjustment
- hidden USB-C charging port
- side switch with locking function,
- high light transmission glass lens with anti-reflective coating
- durable body made of metal.
- resistance class IP68
- adjustable headband with reflective elements
The Fenix HM70R headlamp has a compact, made of metal, solid yet lightweight body thanks to which it successfully passed drop tests from almost 2 meters, weather resistance tests and total submersion to a depth of 2m for 30 min. This constitutes a guarantee of reliability, so wherever you go with it, no matter if it rains or snows, there is no need to worry because the HM70R will survive it all.
Flashlight weighs only 206g including the battery so it is very lightweight and comfortable to use when you use the reflective band to attach it to your forehead. It will work great for any outdoor activity, workshop work, cave exploration or even for reading a book during a summer night in a hammock.
LED's
- The FENIX HM70R is equipped with 3 LEDs with different light colors. The main diode generating a stream of cool-color light with a power of 1600 lumens is the SST40 diode. This diode generates intense and very bright light, which passes through a transparent lens with anti-reflective coating after which it is reflected from the reflector. This generates an impressive range of 186m.
- The second and smaller diode used in this multifunction headlamp is the diode XP-G2 HE generating a maximum light output of neutral color and a power of 400 lumens. The light generated by such a diode is evenly and efficiently scattered by means of a collimating lens with a honeycomb structure. Neutral light color faithfully reproduces colors so it is recommended, for example, for workshop work or electricians where identifying the color of a cable or fuse is an important part of the work.
- In addition, the Fenix HM70R flashlight has 2 Everlight 2835 LEDs generating red light. The red light is ideal for nighttime map reading, emergency situations and rescue signaling, and adapting vision in the dark.
Battery
The headlamp is powered by a very powerful rechargeable battery ARB-L21 5000 mAh, which can provide up to about 100 hours of operation in low mode (30 lumens) or up to 120 minutes of continuous illumination in the strongest Turbo mode (1600 lumens). The HM70R can also be powered by an ordinary 18650 cell, but this requires the purchase of the inexpensive ALF-18 adapter.
USB-C
The HM70R headlamp by FeniX features a clever quick charging system via a hidden USB-C port. With this solution, charging the cell is possible without the need for an external charger. All you need is the included standard USB-C cable and a power source such as a power bank, laptop, desktop computer. The flashlight, thanks to its built-in USB-C port, not only saves money (for buying a charger), but allows you to conveniently enjoy the ability to charge anywhere. The battery recharges in just 4 hours. To access the USB-C port, which is responsible for charging the device, unscrew the side switch of the flashlight. It is a clever and thoughtful solution thanks to which the the port is protected from dust, dirt and water.
Usage
Flashlight is operated with a single enlarged silicone button, which is used to turn on and off and change modes. The button is comfortable enough to operate even with winter and work gloves. The user has a choice of 4 white light modes, 2 neutral light modes, and a fixed and flashing red light mode. The switch has 2 additional functions namely lock mode (holding the switch for 3 seconds) and lED indicator of the battery charge level.
Battery level indications:
- constant green light: 100-85%,
- flashing green light: 85-50%,
- constant red light: 50-25%,
- flashing red light: 25-1%
Safety:
The manufacturer has taken care of the safety of users by using a number of security features and safety systems. The flashlight is equipped with reverse polarity protection in case we happen to put the battery in the wrong position by mistake. In addition, the Fenix HM70R features intelligent protection against overheating and a low battery warning. The headlamp also has a function of remembering the last mode of operation, which means that when you turn off the flashlight and turn it on again, it will return to the last used mode of operation.
Technical data:
Basic data
Number of modes 8
Maks. operating time [h min] 100 h
Maks. luminous flux [lm] 1600
Maks. range [m] 186
Technologies used
Diode type:
- red: Everlight 2835 ,
- cool: LUMINUS SST40 ,
- white: Cree™ XP-G2 (R5)
- Lens type with Ultra Clear™
Security:
- IP class IP68
Power supply
- Acceptable cell type rechargeable battery (secondary)
- Power supply 21700 × 1
- Power source USB-C port
Additional data
- Maks. light [cd] 8667
- Housing material metal
- Fall resistance [m] 2
Dimensions:
- Weight [g] 206
- Width [mm] 51
- Total height [mm] 46
Included:
- Flashlight kit components
- uSB-C cable ,
- fenix ARB-L21-5000 21700 5000 mAh rechargeable battery ,
- spare o-ring ×1 (spare seal)
