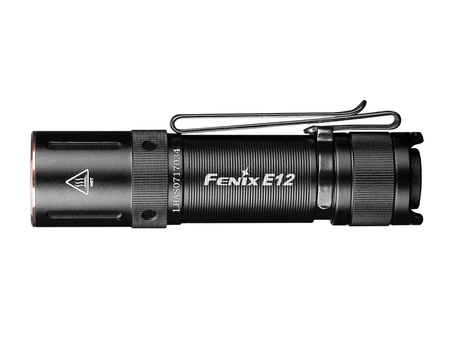

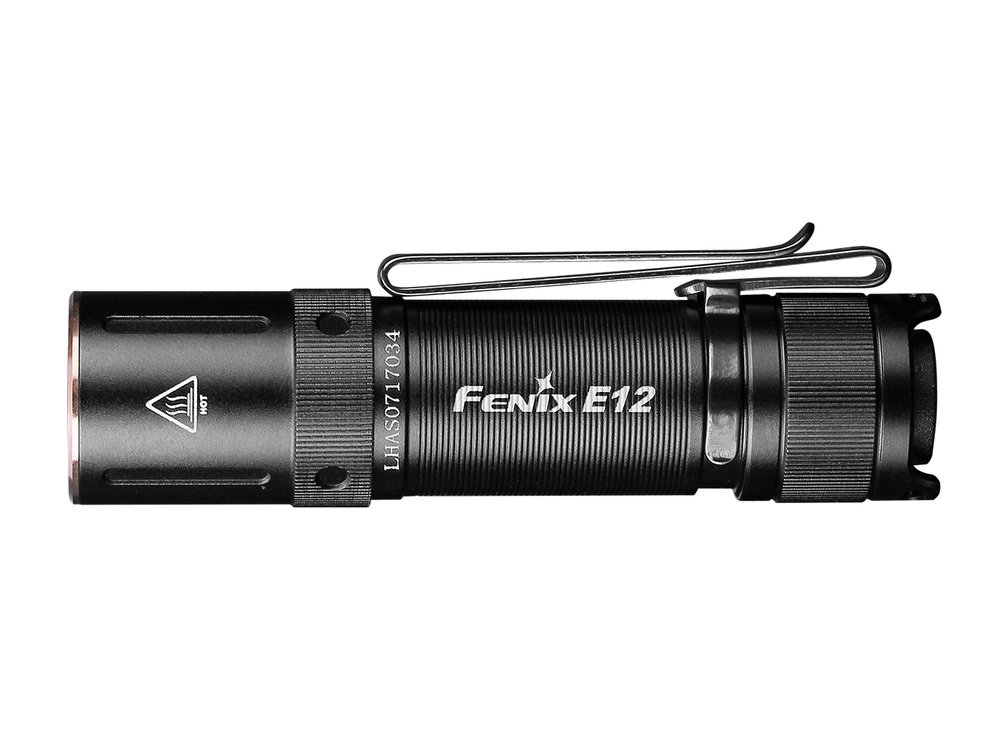

Fenix E12 V Flashlight2.0
Fenix E12 V2.0 is eDC pocket flashlight, which after the upgrade emits a flux of 160 lumens, has 3 lighting modes,greater coverage, two-position clip and economical controller without standby current.
Major changes:
- New Match CA18 LED with stronger light output,
- greater range - up to 68 m,
- longer operating time - up to 70 hours,
- 3 modes of operation,
- collimation lens,
- smaller size,
- lighter construction,
- a cost-effective controller with no standby current,
- two-position clip.
Lightweight and durable
Flashlight body Fenix E1 V2.0 is made of tempered aluminum, subjected to HA-III hard anodizing process, which makes the flashlight's tube and head resistant to scratches, abrasion and mechanical damage.
After reducing the size of the flashlight by 12 mm, it is more manageable and convenient to use. After the upgrade flashlight weighs only 27 g, that is, as much as a popular finger battery.
The milled aluminum surface improves grip and prevents the flashlight from slipping out of your hand. We activate the flashlight and change modes in the traditional way, using the rear switch.
Stronger and further
The light source is a powerful Match CA18 cold-color LED, which in high mode emits a flux of 160 lumens with a brightness of 1133 candelas and a range of 68 m. The light is evenly and widely dispersed (86°) thanks to the ultra-thin collimating lens.
Modes of operation
The user has 3 light modes: low, medium and high. In high mode the flashlight can operate for up to 60 minutes, in low mode 5 lumens for up to 70 hours!
Illumination with a flux of 5 lumens is more than enough to discreetly illuminate the inside of a purse, toolbox or open a door lock.
Power supply - lightweight and easily accessible
The flashlight is powered by one AA alkaline battery, which can also be replaced with a rechargeable Ni-MH battery. The advantage of such a power supply is its easy availability, low cost, and the imperceptible weight of the flashlight.
The flashlight's long runtime is due to the use of a driver, which does not consume power in standby mode.
Rotary switch
Activate the flashlight and change modes using the rear switch. Fenix E12 V2.0 has an alternative brightness change mode, operated by a rotating head. Regardless of the method, the flashlight can be comfortably operated with one hand even in total darkness.
The minimalist interface makes the flashlight ideal for everyday use, where we usually just need quick access to light.
Two-position clip
The functionality of the E12 V2.0 is greatly improved by the two-position clip, which allows us to attach the flashlight to the visor of the cap and use it as a headlamp.
Security
The flashlight uses driver with linear operating characteristics. This means that the flashlight when the battery voltage drops automatically reduces the stream (reduces the mode). This will ensure that the flashlight will operate normally until the battery is fully depleted.
High protection class IP68 makes the flashlight resistant to total immersion in water (to a depth of 2 m), dust and dirt, and dropping.
Fenix E12 V2.0 is a lightweight and handy flashlight with an efficient light output, which will be great for everyday use, as part of edc gear or a backup flashlight.
The parameters shown were obtained under laboratory conditions. Pairdeer alkaline batteries were used during testing.
| Diode | Type | Mode | Maks. luminous flux [lm] | Maks. operating time [h min] alkaline battery | Maks. range [m] | Maks. light [cd] |
|---|---|---|---|---|---|---|
| white | continuous | high | 160 | 60 min | 68 | 1133 |
| average | 30 | 13 h | 28 | 185 | ||
| low | 5 | 70 h | 12 | 31 |
TECHNICAL DATA:
- Number of modes 3
- Maks. working time [h min] 70
- Maks. luminous flux [lm] 160
- Maks. range [m] 68
- White diode type: MATCH CA18
- LED lifetime up to 50,000 h
- IP class IP68
- Acceptable cell type disposable battery (primary) , rechargeable battery (secondary)
- AA power supply × 1
- Light angle [°] maximum 85 (wide)
- Black color
- Maks. light [cd] 1133
- Housing material anodized duralumin
- Fall resistance [m] 1
- Overall length [mm] 78
- Weight [g] 27
- Head diameter [mm] 19
- Body diameter [mm] 18
- Flashlight kit components short wristband (lanyard) (lanyard) , spare o-ring ×1 (spare seal)
- Warranty period 24 months with distributor + 60 months with manufacturer
