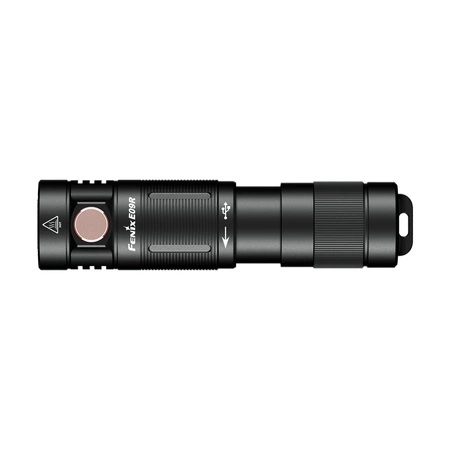

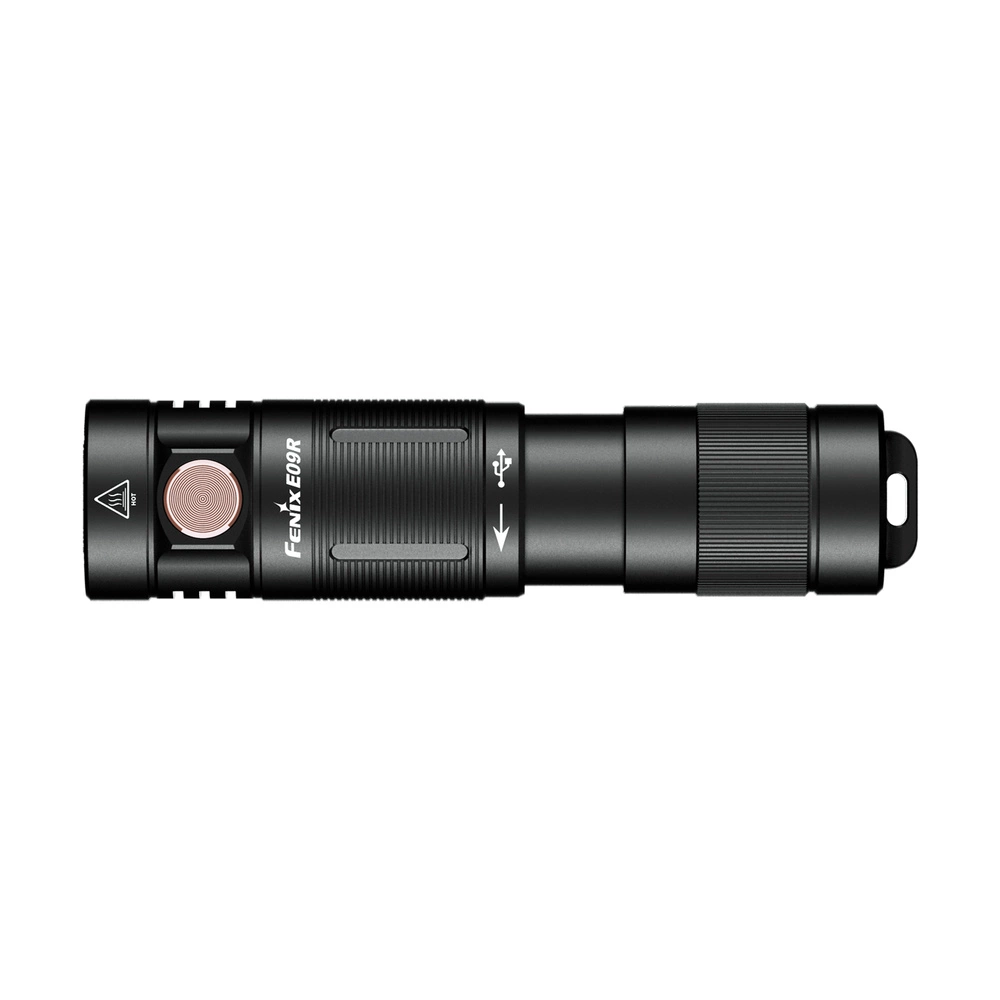

FENIX E09R Flashlight

Fenix E09R is a compact everyday flashlight designed as a key ring. Flashlight emits a light output of 600 lumens which allows for illuminate the target to a maximum of 124m.

Korpus of the flashlight was made of aluminum, which has been subjected to the H-III hard anodizing process. This process makes the the flashlight body and head are even more resistant to mechanical damage and scratches. Small size of the flashlight (79mm) allow you to carry the flashlight safely and conveniently in your pocket, or attaching it as a key ring. Moleted surface of the flashlight provides a safe non-slip grip, thanks to which the flashlight fits securely in the hand.

The E09R flashlight uses an LED as the light element SST-20 LED, which in "BURST" mode emits a light output of 600 lumens and a brightness of 3970 candelas.

The light output is wide and evenly dispersed due to the use of a very thin collimating lens.

Light beam splitting:

• spot 13° (concentrated),
• spill 81° (diffuse).

The flashlight can shine in as many as 5 modes:

• moonlight (3 lumens - max 70h)
• low,
• medium,
• high, (300 lumens - 90 min)
• burst (600 lumens)

The most popular flashlight modes are the strongest mode "BURST" designed for short but intense illumination, and the "MOONLIGHT" with a power of 3 lumens, which is completely sufficient for reading or opening a door lock. The flashlight is also equipped with memory mode so that when the flashlight is restarted it automatically returns to the previous mode of operation.

FENIX E09R flashlight is powered by a lithium polymer battery with a capacity of 800 mAh, which is charged through a a hidden USB Type-C port. The port is hidden inside the flashlight and you can access it only after opening the body so it is properly protected from dirt or moisture. A special feature of the flashlight is its ability to shine even during the charging process.

Starting the flashlight and changing the modes of operation is done with a a small metal switch located on the side wall. Fully pressing the flashlight button contributes to turning it on/off, while single touches are used to change modes of operation. The flashlight also has a locking device to prevent it from being turned on unwantedly. The lock is activated by double-clicking the button. The compact size and simple, uncluttered interface make the flashlight great for everyday use, whenever you need quick access to light.

Security

FENIX E09R has intelligent electronic protection system against overheating. During operation in the strongest mode "BURST" the diode generates a lot of heat, so the intelligent system watches over the temperature of the device and when it approaches the maximum it automatically reduces the light output by a few lumens. High protection class IP68 is guaranteed to withstand total immersion in water up to a depth of 2 meters as well as dust, drop and adverse weather conditions.

Features of the E09R flashlight:

• Luminus SST20 LED,
• built-in Li-Po 800 mAh battery,
• uCB-C hidden charging port,
• angle of light focus: spot 13° (concentrated), spill 81° (diffuse)
• light color temperature: 6200 K,
• metal switch with locking function,
• quick access to the 600-lumen burst mode,
• high light transmission glass lens with anti-reflective coating,
• a6061-T6 aluminum body
• hAIII wear-resistant protective coating (hard anodizing),

SPECIFICATIONS

• Number of modes 5
• Maks. working time [h min] 70 h
• Maks. luminous flux [lm] 600
• Technologies used
• Luminus SST20 diode type
• LED lifetime up to 50,000 h

Security

• IP class IP68
• overheating protection

Power supply

• Acceptable cell type rechargeable battery (secondary)
• Power supply Built-in Li-Po rechargeable battery charged via USB cable
• Power source USB-C port

Additional data

• Maks. light [cd] 3970
• Housing material anodized duralumin
• Fall resistance [m] 1

Dimensions

• Overall length [mm] 79
• Weight without batteries [g] 45
• Head diameter [mm] 19
• Body diameter [mm] 18

Included

• uSB-C cable ,
• spare o-ring ×1 (spare seal) ,
• key ring

Manufacturer information

• Manufacturer Fenixlight Limited, China
• E series
• EAN 6942870308012
• Supplier Symbol E09R

The parameters shown were obtained under laboratory conditions. Li-Po 800 mAh battery was used during testing.
