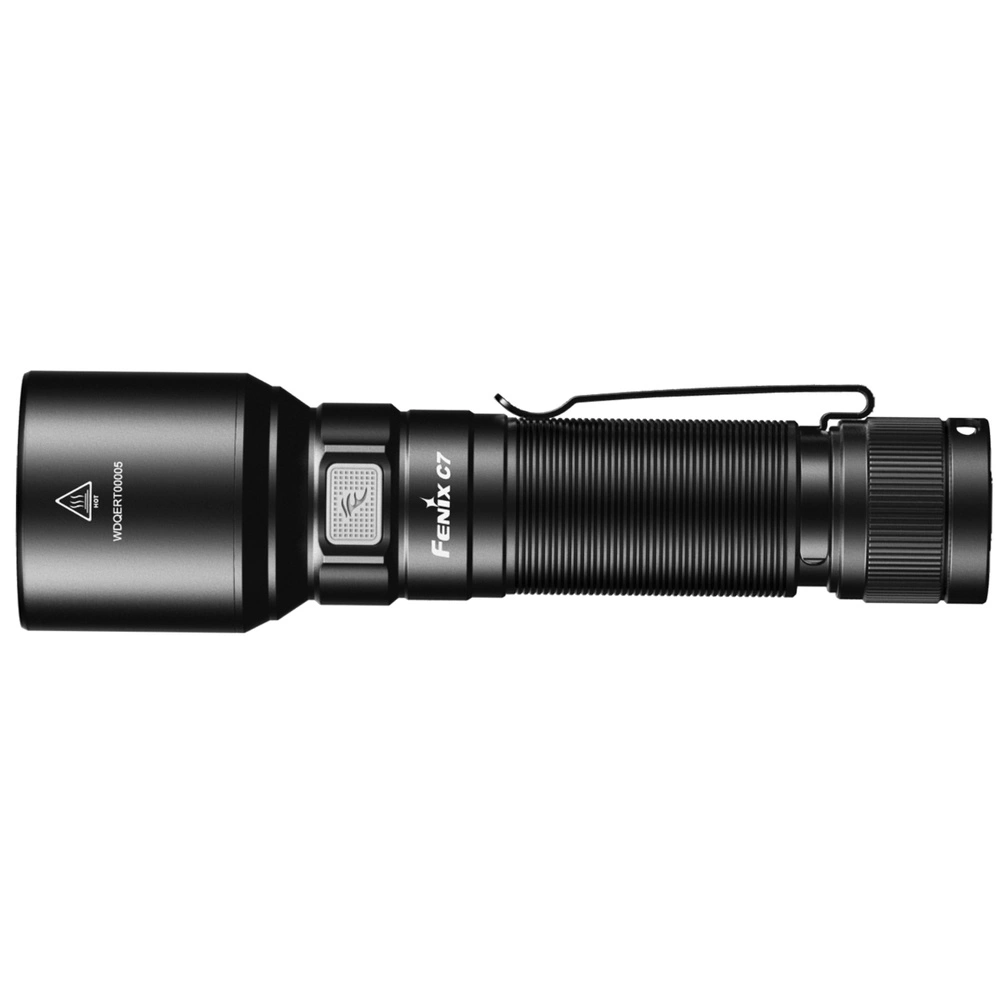

Fenix C7 flashlight
Fenix C7 flashlight
C7 is a powerful industrial flashlight in terms of power made of aluminum. The flashlight generates a light output of 3000 lumens and a range of up to 470 meters. The light is generated by a modern luminus SST70 diode, which is powered by a powerful battery 21700 with a capacity of 5000 mAh. Charging is done via a USB-C fast charging port, and you can check the battery status with the built-in LED battery indicator.
The main features of the Fenix C7 flashlight :
- a powerful yet economical Luminus SST70 LED,
- maximum light output of 3000 lumens,
- flashlight for industrial and outdoor use
- maximum range of as much as 470 m,
- maximum operating time of up to 50 h,
- increased number of modes: 5 + 2,
- powered by a 21700 cell with a capacity of 5000 mAh,
- aluminum construction resistant to dropping, immersion in water and operation in extreme temperatures
- steel clip
The body of the flashlight is made of A6061-T6 aircraft grade aluminum, which is extremely tough and durable and at the same time very light. The surface of the flashlight has been subjected to the most advanced method of anodization, which is hAIII type anodization, imparting hardness to the surface. Thanks to the use of this hard oxide coating, the body is sensationally resistant to abrasion and, on top of that, insulates very well.
The flashlight is characterized by high resistance to mechanical damage, as it has passed endurance tests in which it was subjected to drops from a height of 1.5 m on all sides of the flashlight. The Fenix C7 is reliable and will handle work at extreme temperatures ranging from -35° to +45°C.
C7 is a professional industrial flashlight with a high iP68 protection rating, which means that it is fully resistant to total immersion in water (for 30 minutes at a depth of 1 m).
We can attach and carry the flashlight in 3 ways: clip, lanyard attachment and magnetic cap. C7 has a spring clip so that we can firmly attach the flashlight to our trouser belt or backpack. The magnetic cap makes it possible to attach the flashlight to metal surfaces, which is great for workshop work where we need to use both hands.
LEDs
C7 uses a new generation LED Luminus SST70 with 3000 lumens and a range of 470m. This diode generates intense and very bright light with cool color, where an ultra-thin collimating lens with high light transmission and a smooth reflector are used. Such a solution causes that the light beam is highly concentrated and reflects at a distance of up to 470 m.
Usage
Flashlight can operate in 5 modes intensity of light output: turbo, high, medium, low, eco and two flash light modes: STROBO and S.O.S. The C7 is operated with a silicone button, which is responsible for turning the flashlight on and off and changing its modes of operation. When the button is clicked twice in rapid succession, the flashlight activates the mode lock. In addition, the flashlight features an lED battery charge level indicator, which informs users of its condition to prevent unwanted discharge during operation (a feature that works only with the ARB-L21 battery). 5000).
Battery level indications:
- constant green light: 100-85%,
- flashing green light: 85-50%,
- constant red light: 50-25%,
- flashing red light: 25-1%.
Example use of modes:
- eco 30 lumens - momentary illumination in total darkness
- low 100 lumens - precise illumination of the place at a short distance
- medium 400 lumens - illumination of closer objects
- high 1400 lumens - road lighting
- turbo 3000 lumens - illumination of the hall, forest wall, etc.
- strobe - position signaling
- S.O.S - rescue signal
The flashlight is charged via a built-in and properly protected from the elements USB-C socket. The Fenix C7 has a clever fast-charging system using a hidden USB-C port. With this solution, charging the cell is possible without the need for an external charger. All you need is the included standard USB-C cable and a power source such as a power bank, laptop, desktop computer. The flashlight, thanks to its built-in USB-C port, not only saves money (for buying a charger), but allows you to conveniently enjoy the ability to charge anywhere. The battery charges with 2A in just 3 hours.
The Fenix C7 features overheat and reverse polarity protection, a low battery warning function, and an intelligent brightness reduction system when the battery is running low.
| Diode | Mode | Mode | Maks. power [lm] | Maks. working time [h min] | Maks. range [m] | Maks. light [cd] |
|---|---|---|---|---|---|---|
| eco | 30 | 68 h | 45 | 520 | ||
| white | low | continuous | 100 | 29 h | 00 | 1600 |
| average | 400 | 7 h | 160 | 6400 | ||
| high | 1400 | 2 h | 300 | 22500 | ||
| turbo | 3000 | 1 h | 470 | 55200 | ||
| strobe | flash | 3000 | - | - | ||
| sauce | flash | 100 | - | - |
Light performance was tested using a rechargeable battery ARB-L21-5000.
Technical Data:
- Number of modes 7
- Maks. working time [h min] 68 h
- Maks. luminous flux [lm] 3000
- Maks. range [m] 470
- Luminus SST70 diode type
- IP class IP68
- Power source USB-C port
- Maks. luminosity [cd] 55200
- Housing material anodized duralumin
- Fall resistance [m] 2
- Total length [mm] 149
- Weight without battery [g] 172
- Head diameter [mm] 40
- Body diameter [mm] 27
Included:
- Flashlight kit components
- uSB-C cable ,
- distributor's manual ,
- short wristband (bow) (lanyard) ,
- spare o-ring ×1 (spare seal)
